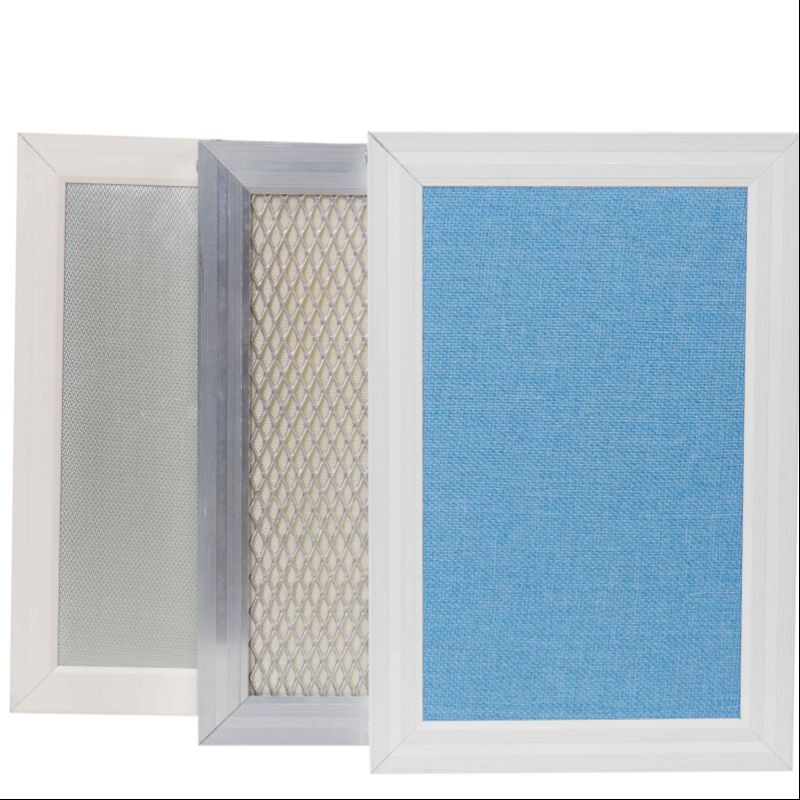

Fiberglass Acoustical Baffle Clouds Panels
Product Introduction
Overhead-hung fibrous glass acoustic panels prove valuable in expansive venues including sports arenas, performance theaters, and lecture halls, since they are capable of managing echo, enhancing speech definition, refining the sonic atmosphere, and striking a harmony between visual appeal and area usage.
Viewed from below, horizontally mounted Fibrous Glass Acoustic Baffles look like suspended cloud forms, earning them the nickname "Acoustic Cloud Panels."
A baffle constructed with an aluminum frame surpasses a standard fibrous glass ceiling panel when it comes to mechanical robustness and structural integrity. This superiority enables manufacturing at larger scales and installation overhead with a low likelihood of fracture - a condition that conventional glass-fiber panels cannot withstand once their dimensions become excessive. Consequently, for expansive environments such as sports stadiums and performance venues, aluminum-framed acoustic baffles are chosen over regular fibrous glass ceiling solutions.
Product Parameters
|
Item |
Fiberglass Acoustical Baffle Clouds Panels |
|
Standard size |
600x600,1200*600,1200*2400mm,customize |
|
Thick |
20/25/40/50mm |
|
Raw Material |
Yellow or white glass wool |
|
NRC |
0.9 |
|
Flame retardant |
EN 13501-A1 |
|
Eco-Friendly |
Class E1 |
Acoustic performance
From 500Hz upward, the Aluminum-Framed Acoustic Baffle delivers absorption levels close to total completeness, registering an alpha value of roughly 1.0.
Increasing the product's thickness yields notable gains in its handling of lower frequencies.
In side-by-side assessments, ceiling-hung Fiberglass Acoustic Baffles outperform wall-mounted units acoustically, thanks to noise capture on both faces coupled with an internal trapped-air layer.
Product customization
Operating as a supplier focused on project-specific delivery, our Overhead-Hung Fibrous Glass Acoustic Panels can be tailored to suit individual job specifications, covering dimensions, depth, hue, mounting method, along with concealed or exposed metallic framing. Additionally, we offer guidance on acoustic positioning and can blend these noise-reducing boards into the broader architectural scheme to satisfy both practical performance requirements and visual design goals.
Description
Manage acoustic decay, minimize repeated reflections, and eliminate stationary interference patterns
Venues with considerable square footage, like athletic arenas, frequently feature tall overhead decks, wide unpartitioned footprints, and an abundance of non-porous surfaces. This combination leaves sound highly prone to continuous bouncing, which pushes reverberation spans to extremely prolonged durations.
Mounted at ceiling level, glass-fiber acoustic baffles soak up upper-range sonic energy, notably cutting down on the RT60 decay figure and eliminating both excessive lingering and loss of definition.
Boost spoken word intelligibility and instrumental sound quality
Overhead-suspended fibrous glass baffles minimize various sound wave bounces, increase the proportion of unreflected signal, raise the Speech Transmission Index (STI) value, and remove distorted audio. When combined with diffusion elements, these units produce exceptional clarity for spoken content alongside an immersive sonic environment.
Dual-surface noise absorption with strong acoustic performance
When set against conventional ceiling solutions, hanging fibrous glass acoustic baffles capture sound from two orientations, providing superior absorption performance per unit of coverage.
Best applied in: Voluminous, tall-ceiling environments where a full continuous overhead layer cannot be readily installed.
Interior Trim and Visual Planning
Panels can be placed in spot arrangements that do not require dropping the overhead height, keeping a sleek design language. Ceiling-suspended glass-fiber baffles carry bold lines and an upscale character; they can be laid out as straight runs, serpentine curves, or angular clusters to upgrade the room's visual makeup.
Where they hang can also shift depending on where structural joists, lamps, and HVAC outlets are placed.
Installation
Fibrous glass overhead acoustic panels are normally mounted either by hanging them beneath a joist framework using cables or by attaching them straight onto the beams with fasteners. Three typical hanging orientations exist: level, upright, and angled at 45 degrees. The precise mounting approach can be adapted based on the job's specifications, with accompanying hardware and cutouts supplied.
Project Cases
Senior high school swimming pool
A pale-toned covering paired with a flat ceiling-hanging technique yields a neater overall appearance and helps the interior look more luminous. This arrangement also greatly cuts down on unwanted watery sound.

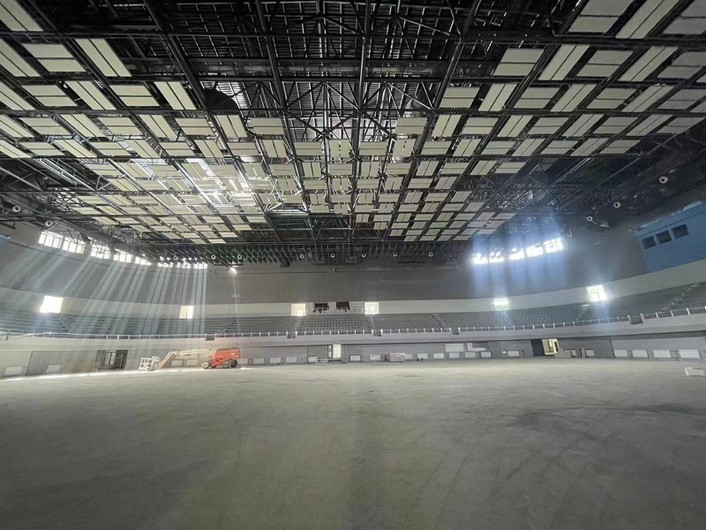

Auditorium
The performance hall is exceptionally spacious, featuring an extremely elevated overhead structure, which necessitated a substantial quantity of overhead-hung fibrous glass acoustic panels. The mounting process also carried stringent demands; suspension was not permissible, so attachment to the framework using fasteners was required. Additionally, tight constraints on measurements applied - if the lengths proved excessive, the metallic border would be prone to warping.

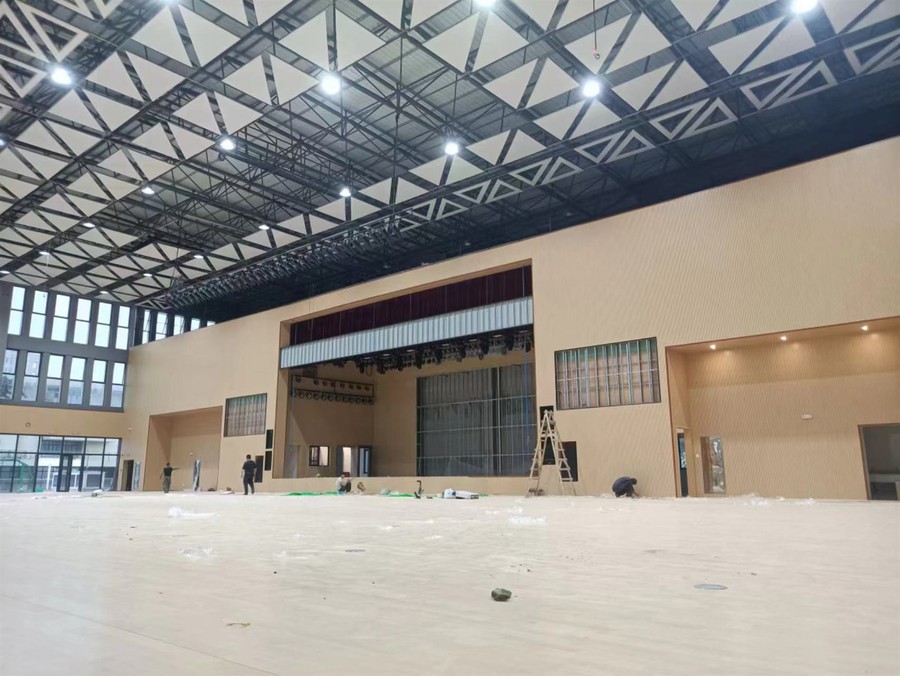

University Indoor Conference Hall
This meeting space began as a basketball gymnasium, hence its footprint is extremely large. Ceiling-mounted glass-fiber acoustic baffles were added overhead, greatly enhancing the sound properties - cutting down on the bouncy reflections characteristic of sports halls while also boosting the overall listening quality of the conference area.
