Sound-Absorbing Materials Manufacturer for Commercial and Industrial Acoustic Applications
Engineered for building acoustics and industrial equipment noise control, our sound-absorbing materials provide Noise Reduction Coefficients (NRC) from 0.70 to 0.95 across frequencies between 125 Hz and 4000 Hz. Available in high-density PET felt, melamine/polyurethane open-cell foams, perforated timber, and acoustic lagging composites, these product lines are tested to ASTM E84 Class A and EN 13501-1 fire safety standards.
We supply acoustical contractors, HVAC system manufacturers, and OEM equipment builders with raw sheets and custom CNC/die-cut components produced to specified drawing tolerances.
-
![PET Acoustic Wall Panels]()
PET Acoustic Wall PanelsBrand Name：MQ
Product Name：PET Acoustic Wall Panels
Standard size：stand size 2440*1220mm，custom size
Standard thickness：9/12/24/28mm custom thickness
Color：Customized... -
![Felt Acoustic Panels]()
Felt Acoustic PanelsBrand Name：MQ
Product Name：Felt acoustic panels
Standard size：stand size 2440*1220mm custom size
Standard thickness：9/12/24/mm custom thickness
Color：Customized... -
![High Sound Absorbing Pet Polyester Acoustic Panel For Commercial Project]()
High Sound Absorbing Pet Polyester Acoustic Panel For Com...Product Name：Pet Polyester Acoustic Panel
Base Material：100% Recycled Polyester fiber
Standard size：1220*2440mm/Customized size
Standard thickness：9/12/15/24Customized... -
![Polyester Fiber Sound Absorbing Board]()
Polyester Fiber Sound Absorbing BoardBrand Name:MQ
Product Name:polyester fiber sound absorbing board
Standard size:stand size 2440*1220mm,custom size
Standard thickness:9/12/24/28mm custom... -
![3d Acoustic Panels]()
3d Acoustic PanelsBrand Name：MQ
Product Name：3d acoustic panels
Raw Material: 100% recycled polyester fibre
Surface: Hot‑moulded 3D relief embossed texture
Standard Sizes: 600×600 mm,... -
![3d Acoustic Tiles]()
3d Acoustic TilesBrand Name：MQ
Raw Material: 100% recycled polyester fibre
Size: 600×600 mm, 600×1200 mm, 1200×2400 mm custom size
color：custom color
Thickness:... -
![Felt Ceiling Panels]()
Felt Ceiling PanelsProduct Name：felt ceiling panels Raw Material：100% Recycled Polyester PET Felt U Cross Section Dimension：45 × 50 mm custom Dimension Thickness：9 mm/12mm/15mm custom Thickness Standard Baffle...
-
![Sound Baffles Ceiling]()
Sound Baffles CeilingProduct Name:sound baffles ceiling
Raw Material:100% Recycled Polyester PET Felt
U Cross Section Dimension:45 × 50 mm custom Dimension
Thickness:9 mm/12mm/15mm... -
![Felt Ceiling System]()
Felt Ceiling SystemFelt ceiling system is a multi-functional suspended ceiling material integrating sound absorption, fire prevention,
environmental protection and decoration. Manufactured from 100% recyclable... -
![Acoustic Desk]()
Acoustic DeskProduct Name：Office Desk Privacy
Core Material： PET Polyester Felt
Size：Customized size
Thickness：9/12/15/20mm Customized Thickness
Color：40+ Customized... -
![Free Standing Sound Absorbing Panels]()
Free Standing Sound Absorbing PanelsProduct Name: Free standing sound absorbing panels
Material: Premium polyester fiber, sound absorbing core
Size: custom size
Color: custom color
shape: custom... -
![Acoustical Pendant Lighting]()
Acoustical Pendant LightingBrand Name：MQ
Product Name：acoustical pendant lighting
Standard size：Customized size
Standard thickness：Customized thickness
Color：Customized Color
Material：100%...
Product Types & Material Configurations
High-Density PET Acoustic Panels
Core Material: 100% Polyethylene Terephthalate (PET) fiber (including recycled content)
Surface Density: 1,300 g/m2 to 2,300 g/m2 (1.3 kg/m2 to 2.3 kg/m2)
Standard Thicknesses: 9 mm, 12 mm, 24 mm
Material Characteristics: Hydrophobic, zero formaldehyde added, impact-resistant, suitable for beveling
Primary Applications: Architectural wall paneling, suspended ceiling baffles, office partitions
Open-Cell Acoustic Foams (Melamine & Polyurethane)
Core Material: Flame-retardant Polyurethane (PU) or Melamine resin foam
Bulk Density: PU (25 to 35 kg/m3), Melamine (8.5 to 11 kg/m3)
Standard Thicknesses: 25 mm, 50 mm, 75 mm, 100 mm (Flat, Wedge, or Pyramid profiles)
Material Characteristics: High temperature resistance (-40 deg C to +150 deg C for melamine), open-cell structure for mid-to-high frequency dissipation
Primary Applications: HVAC duct liners, compressor sound enclosures, generator room insulation

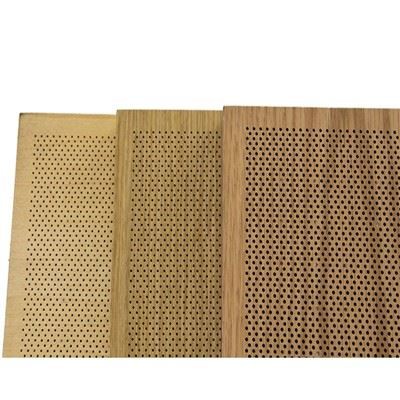

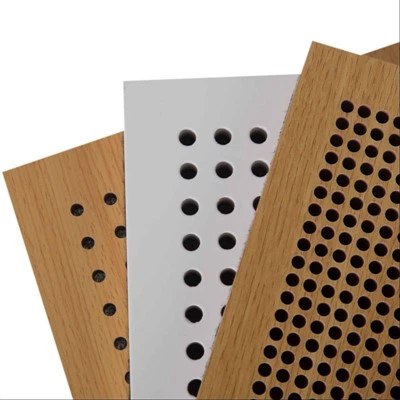

Perforated Timber & Metal Acoustic Panels
Substrate Options: MDF, Plywood, Aluminum, or Galvanized Steel backed with non-woven acoustic fleece
Perforation Styles: Round holes (dia. 3 to 8 mm), slotted grooves, or micro-perforations
Open Area Ratio: 8% to 22% (configurable per acoustic spec)
Material Characteristics: Structural rigidity, wood-veneer / powder-coated finishes, tuned absorption for low-to-mid frequencies
Primary Applications: Concert halls, auditoriums, lecture theaters, transportation hubs
Acoustic Lagging & Barrier Composites
Structure: Mass Loaded Vinyl (MLV) acoustic barrier bonded with decoupled open-cell foam or glass fiber tissue
Surface Mass: 4.5 kg/m2 to 8.0 kg/m2
Material Characteristics: Combines acoustic absorption with airborne sound transmission loss (STC 28 to 32, laboratory tested)
Primary Applications: Wastewater pipe wrapping, industrial fluid lines, motor housings
Specifications & Performance
|
Material Category |
Thickness |
Density / Surface Mass |
NRC Rating |
Fire Flammability Rating |
Operating Temperature |
|
PET Acoustic Panel |
12 mm / 24 mm |
1,700 to 2,300 g/m2 |
0.75 to 0.85 |
ASTM E84 Class A / EN 13501-1 B-s1, d0 |
-20 deg C to +80 deg C |
|
Melamine Foam |
50 mm |
9.5 kg/m3 |
0.90 to 0.95 |
UL 94 V-0 / EN 13501-1 C-s1, d0 |
-40 deg C to +150 deg C |
|
PU Acoustic Foam (Wedge) |
50 mm / 75 mm |
30 kg/m3 |
0.80 to 0.85 |
California TB117 / BS 5852 Part 2 |
-30 deg C to +90 deg C |
|
Perforated MDF Panel |
16 mm / 18 mm |
720 kg/m3 |
0.70 to 0.80 |
EN 13501-1 B-s2, d0 / BS 476 Class 1 |
-10 deg C to +60 deg C |
|
MLV Composite Lagging |
25 mm (Total) |
5.0 kg/m2 |
0.65 (STC 28) |
ASTM E84 Class A / ISO 3795 |
-20 deg C to +100 deg C |
Architectural Acoustics
Open Office Spaces: Wall paneling and suspended ceiling baffles engineered to reduce reverberation time (RT60) in commercial work environments.
Auditoriums & Studios: Combination of perforated sound-absorbing panels and corner bass control elements for acoustic tuning.
HVAC Systems & Machinery Enclosures
Air Handling Units (AHU): Surface-laminated foam linings tested under airflow velocities up to 20 m/s to prevent fiber erosion.
Industrial Compressor Covers: Custom-fitted acoustic jackets designed for thermal dissipation and radiated equipment noise reduction. [Note: Exact dBA insertion loss depends on enclosure sealing and base equipment frequency spectrum]
Internal Gaskets & Liners: Custom die-cut foam and felt parts with factory-applied pressure-sensitive adhesive (PSA) for direct line assembly.
OEM Processing Options
CNC & Digital Cutting: Multi-axis flatbed CNC cutting for sheet dimensions up to 1500 x 3000 mm, with dimensional tolerances within +/- 0.5 mm.
Adhesive Lamination: Pressure-sensitive adhesive backings, including 3M 9448A, Nitto 5000NS, or flame-retardant acrylic tapes.
Edge & Surface Fabrication: 45-degree beveling, chamfered edges, tongue-and-groove joints, heat-sealed perimeters, and foil/tissue lamination.
Installation Methods
Wall Systems: Contact adhesives, mechanical impaling clips, or aluminum Z-clip tracks.
Ceiling Suspensions: Adjustable steel wire suspension kits with threaded anchors for hanging baffles and acoustic clouds.
Testing & Compliance
Acoustic Testing
Tested per ASTM C423 and ISO 354 standard test methods. Third-party laboratory test reports (CNAS / NVLAP accredited) are available upon request.
01
Fire Flammability Certificatio
Compliant with ASTM E84 (Class A), EN 13501-1, and UL 94 flame retardancy benchmarks.
02
Environmental & VOC Emissions
Certified to OEKO-TEX Standard 100 (PET fiber), REACH SVHC compliant, RoHS compliant, and tested for low formaldehyde emission per EN 717-1 (less than 0.05 mg/m3).
03
Quality System
Factory manufacturing processes operating under ISO 9001:2015 quality management standards.
04
Packaging & Project Supply
Export Packaging
PE film wrapping with corner edge protectors, packed in heavy-duty corrugated cartons or fumigation-free wooden crates.
Container Optimization
Stretch-wrapped pallet loads sized for standard 20FT and 40HQ ocean containers.
Job-Site Marking
Custom carton labeling with part numbers, project codes, and zone/floor designations for site handling.
Sample Service
Standard sample swatch kits (PET colors, foam densities, perforation patterns) ship via express courier upon request.
