Sound Insulation Materials

Sound Insulation Materials Manufacturer for Building and Industrial Noise Control

Our sound insulation materials are designed to reduce sound transmission in commercial buildings, residential projects, and industrial environments. Available in various material types, thicknesses, and densities, our solutions can be selected to meet different wall, ceiling, floor, and equipment enclosure requirements. Custom specifications and material combinations are available to support project-specific acoustic performance, installation, and building compliance needs.

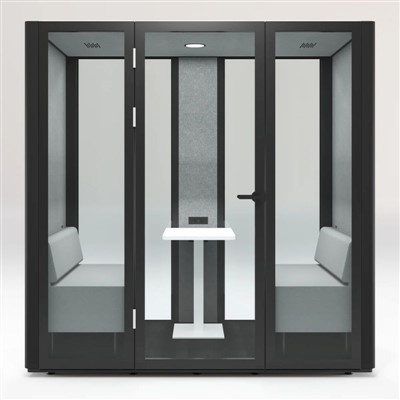

Sound Proof Office Booth
Product Name：Sound Proof Office Booth
Capacity：1 Person / 2 Persons / 3-4 Persons Meeting Pod / Customized
Size：custom External and Internal
Frame Material：Heavy-Duty...

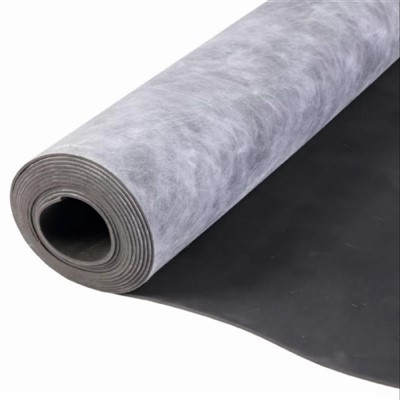

Loaded Vinyl Soundproofing
Loaded vinyl soundproofing stands as a flexible, high-density material built to block noise. Its main ingredient is PVC, blended with mineral fillers like barium sulfate and calcium carbonate...
Soundsulate Mass Loaded Vinyl
Soundsulate Mass Loaded Vinyl is a high-performance flexible sound barrier.It is made from eco- PVC and has high-purity barium sulfate and mineral fillers to make it strong. This material does not...

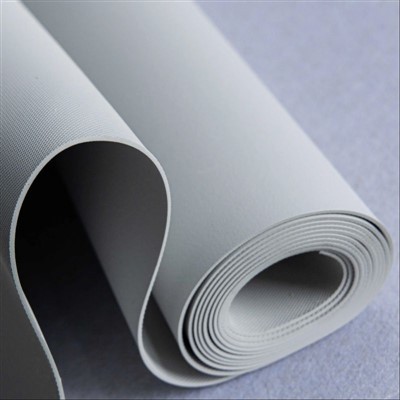

White Mass Loaded Vinyl Soundproofing
Our white mass loaded vinyl soundproofing is a product that helps block noise. It is made from PVC and light-colored mineral fillers giving it a clean look. This makes it perfect for interior...

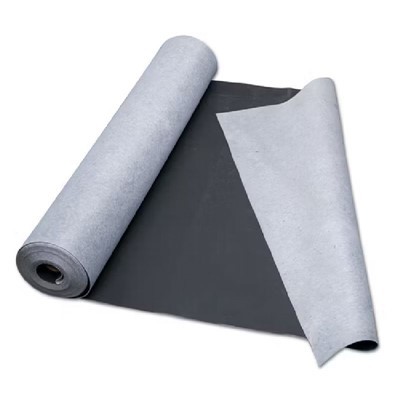

Soundproofing Vinyl For Walls
Soundproofing Vinyl for Walls is an MLV product specially optimized for wall sound insulation, focusing on solving problems such as sound leakage and poor privacy in lightweight partition walls....

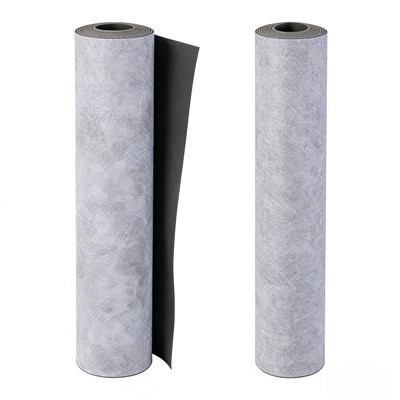

High Density MLV Noise Barrier
High Density MLV Noise Barrier is a professional sound insulation material designed for environments with strong noise. It is made from a higher density filler and reinforced PVC base material,...

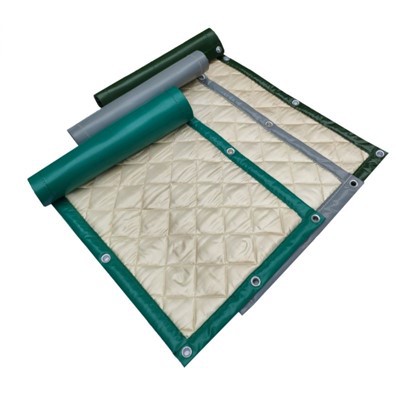

Industrial Noise Barrier
Industrial Noise Barrier is specially designed for noise reduction in factory equipment. It adopts a multi-layer composite acoustic structure, with an outer layer made of wear-resistant and...
Exterior Soundproofing Fence
Exterior Soundproofing Fence can be used for noise reduction outdoors all day long. It is made of UV-resistant and waterproof PVC fabric combined with multiple layers of sound-absorbing and...
Construction Acoustic Barriers
Construction Acoustic Barriers are specially designed for construction sites, featuring high-efficiency sound insulation, fire resistance, dust and water resistance. They are made of a composite...

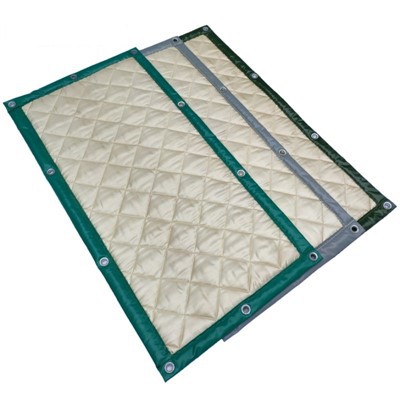

Vinyl Sound Barrier
Vinyl Sound Barrier is a flexible acoustic material that combines both sound insulation and absorption functions. It can be hung on steel frames and walls using hardware accessories, effectively...

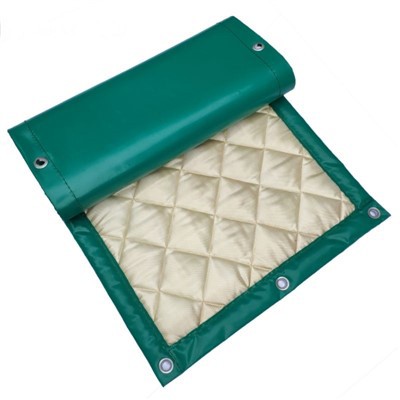

Motorway Acoustic Fencing
Motorway Acoustic Fencing is specially developed for long-term noise reduction on transportation arteries. It adopts high-weather-resistant composite fabric and high-density acoustic filling...

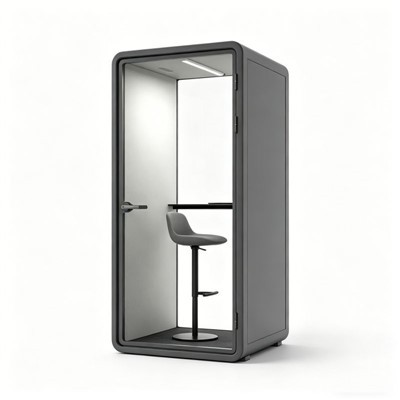

Single Person Soundproof Booth
Soundproof booths offer a way to create private, low-noise spaces in public environments, improving the privacy of conversations, productivity, and acoustic comfort in offices, hotels, and other...

First 12 Last

Product Types & Structural Configurations

Category	Material Composition	Primary Acoustic Mechanism	Surface Profile / Coverings
Mass Loaded Vinyl (MLV)	Polyvinyl chloride base loaded with high-purity barium sulfate mineral fillers	Unbacked limp mass converting sound energy into thermal energy through viscous friction	Smooth, textured, or scrim-reinforced film
Faced / Foil-Backed MLV	Heavy MLV fused with reinforced aluminum foil or scrim backing	Mass barrier combined with thermal reflection and radiant heat barrier properties	Reinforced aluminum foil finish
Industrial Noise Barriers	Heavy-duty PVC-coated polyester fabric exterior with MLV core and polyester sound-absorbing batting	Decoupled mass-air-mass structure providing simultaneous sound transmission blockade and absorption	Weather-resistant vinyl coated fabric with edge grommets
Exterior Acoustic Curtains	UV-stabilized, waterproof PVC exterior layer, mold-resistant acoustic core, heavy-duty velcro/grommet border	Sealed barrier wall blocking direct sound wave propagation on open sites	Anti-UV vinyl fabric with reinforced hook-and-loop edges

Technical Specifications & Performance

Parameter	MLV 0.5 lb/sq ft (2.5 kg/m2)	MLV 1.0 lb/sq ft (5.0 kg/m2)	MLV 2.0 lb/sq ft (10.0 kg/m2)	Flexible Acoustic Noise Barrier Panel
Thickness	1.2 mm	2.5 mm	5.0 mm	15 mm - 50 mm
Sound Transmission Class (STC)	20 dB	26 dB	31 dB	27 - 33 dB (NRC 0.75 - 0.85)
Weighted Sound Reduction Index (Rw)	21 dB	27 dB	32 dB	28 - 34 dB
Fire Performance Rating	ASTM E84 Class A / EN 13501-1 B-s1, d0	ASTM E84 Class A / EN 13501-1 B-s1, d0	ASTM E84 Class A / EN 13501-1 B-s1, d0	Class B / Class A Option
Tensile Strength	> 3.5 MPa (ISO 527-2)	> 4.2 MPa (ISO 527-2)	> 4.5 MPa (ISO 527-2)	> 1200 N / 5 cm (Outer Fabric, ASTM D751)
Tear Resistance	> 15 N/mm	> 18 N/mm	> 22 N/mm	> 250 N
Operating Temperature Range	-20 deg C to +70 deg C	-20 deg C to +70 deg C	-20 deg C to +70 deg C	-30 deg C to +80 deg C
Standard Roll / Panel Widths	1.0 m / 1.2 m	1.0 m / 1.2 m	1.0 m / 1.2 m	1.0 m x 2.0 m / 1.2 m x 2.4 m
Environmental Compliance	RoHS, REACH, Low VOC	RoHS, REACH, Low VOC	RoHS, REACH, Low VOC	Weather & Mold Resistant

Target Applications

01/

Drywall & Stud Wall Assembly: MLV installed directly over wood or steel studs prior to drywall attachment reduces airborne sound transmission across low and mid frequencies.

02/

HVAC & Industrial Piping: Foil-faced MLV applied over ductwork and industrial piping suppresses fluid velocity noise and breakout acoustic vibration.

03/

Equipment & Compressor Enclosures: Multi-layer acoustic noise barriers cut direct machine radiated noise when suspended around generators, chillers, or stamping presses.

04/

Perimeter Construction Sites: UV-resistant exterior acoustic barriers hanging on chain-link fences or scaffolding suppress heavy machinery noise during urbanization work.

Customization & Installation Engineering

OEM Fabrication Options
Density & Weight Adjustment: Precision formulation adjustments from 1.5 kg/m2 to 10.0 kg/m2.

Slitting & Die-Cutting: Roll widths cut from 300 mm up to 1500 mm. Precision die-cut sheets for machine casing linings.

Reinforcement Layering: Scrim reinforcement insertion for mechanical fastening strength on vertical suspensions.

Hardware Accessories: Stainless steel or brass grommets, heavy-duty Velcro strips, and isolation tape integrated directly into panel borders.

Field Installation Methods
Mechanical Fastening: Fasten MLV to studs using large-head roofing nails or pneumatically driven staples with neoprene washers to prevent tearing under self-weight.

Sealing & Overlapping: Overlap roll joints by at least 50 mm (2 inches). Seal all seam lines completely using acoustic caulk and high-tack pressure-sensitive tape to eliminate sound flanking paths.

Pipe & Duct Wrapping: Secure foil-faced MLV wrapping with mechanical band straps or pressure-sensitive aluminum foil tape at every joint seam.

Quality Control & Compliance

Our manufacturing line uses automated continuous thickness control and gravimetric inline dosing systems to maintain consistent density and acoustic performance across every batch.
[ Barium Sulfate + PVC Resins ]
▼
[ Inline Gravimetric Dosing ] ─── Real-time density monitoring
▼
[ Continuous Calendering ] ─── Automated laser thickness scanning
▼
[ Tensile & Flammability Testing ] ── ISO 10140 / ASTM E84 compliance check
▼
[ Cured Roll Stock Packaging ]

Density Control: Automated laser gauge systems monitor sheet thickness in real time, maintaining weight tolerances within +/- 3%.

Fire Safety Certification: Fully compliant with ASTM E84 Class A flame spread and smoke development indexes, as well as European standard EN 13501-1 (Class B-s1, d0).

Material Testing & Odor Control: Every production run undergoes tensile strength, tear resistance, and cold-bend testing down to -20 deg C. Formulated with non-toxic phthalate-free plasticizers and virgin PVC resins to maintain VOC emissions below EN 717-1 standard thresholds, preventing ambient odor during indoor drywall installation.

Packaging & Project Supply Chain

To prevent roll deformation, edge damage, and moisture ingress during long-distance ocean transit, all shipments strictly adhere to heavy-duty export packaging standards.

MLV Rolls: Core-supported cardboard tubes wrapped in PE film and kraft paper
Palletization: Fumigated wooden pallets / plastic pallets, edge protectors, and stretch-wrap banding
Acoustic Barriers: Flat stacked on pallet skids with reinforced corner guards

Container Loading Capacity:
- 20ft GP Container: Approx. 18,000 - 20,000 kg (weight-limited)
- 40ft HQ Container: Approx. 26,000 kg (max payload limit)

Certificate

FAQ

Q: What is the primary difference between sound insulation materials (MLV) and sound absorption panels?

A: Sound insulation materials like MLV are dense, heavy barriers engineered to block sound transmission from passing through a wall or ceiling assembly. Sound absorption materials, such as PET felt or glass wool, are porous structures designed to reduce reverberation and echo within a single room space.

Q: How does Mass Loaded Vinyl achieve high STC ratings despite its thin profile?

A: MLV relies on high material density (formulated with heavy minerals like barium sulfate) combined with viscoelastic flexibility. The unbacked limp mass absorbs acoustic wave energy through internal friction without vibrating sympathetically like rigid sheet metal or drywall.

Q: Can your MLV materials pass local fire safety codes in commercial building contracts?

A: Yes. Our MLV products are formulated with flame-retardant additives to meet ASTM E84 Class A flame spread index (< 25) and smoke development index (< 50), as well as European standard EN 13501-1 Class B-s1, d0. Test certificates from accredited third-party laboratories are available upon request.

Q: What roll dimensions and custom cut sizes are available for wholesale orders?

A: Standard MLV roll sizes are 1.0 m x 10 m, 1.2 m x 5 m, or 1.2 m x 10 m. We provide custom slitting down to 300 mm widths or die-cut customized sheet sizes according to your project's technical drawings.

Q: How do you handle seam sealing to avoid acoustic flanking paths?

A: For drywall installations, overlap MLV seams by 50 mm (2 inches) and seal all seams with acoustic caulk. On butt-joint installations or foil-backed duct lagging, apply high-tack acoustic tape over all joint seams to ensure airtight integrity.

Q: What is your typical production lead time for full container load (FCL) orders?

A: Standard lead time for a 20ft or 40ft container load (18,000 kg - 26,000 kg) is 12 to 15 business days from order confirmation. Custom formulations, die-cut shapes, or specific grommet hardware additions require 15 to 20 business days.
