Cinema Acoustic Design
Cinema focuses on stereo sound restoration for movies. Dialogue, surround sound and low-frequency effect require strict acoustic control.Core requirements: clear dialogue, accurate sound positioning, no low-frequency roaring or standing wave, low noise for immersive viewing.
Common acoustic problems without professional acoustic treatment
1. Strong side & rear wall reflection blurs movie dialogue
2. Low-frequency accumulation causes indoor roaring
3. Chaotic ceiling reflection disturbs surround sound positioning
4. Mechanical background noise ruins immersive experience
5. Unbalanced sound effect between different seating areas
Acoustic design standards

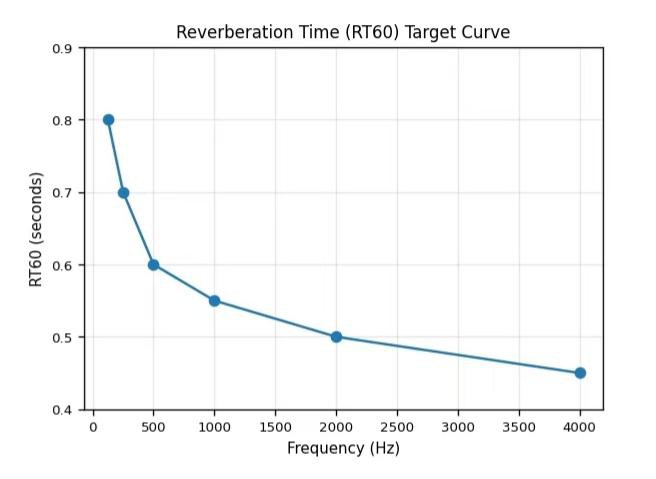

Reverberation Time (RT60)
Cinema acoustics are designed for clarity of dialogue and impact of sound effects.
- Standard cinemas: 0.3 – 0.5 seconds (500-1000Hz)
- Large format/IMAX: 0.5 – 0.7 seconds
Short reverberation is critical to prevent sound mixing and preserve the clarity of the soundtrack.

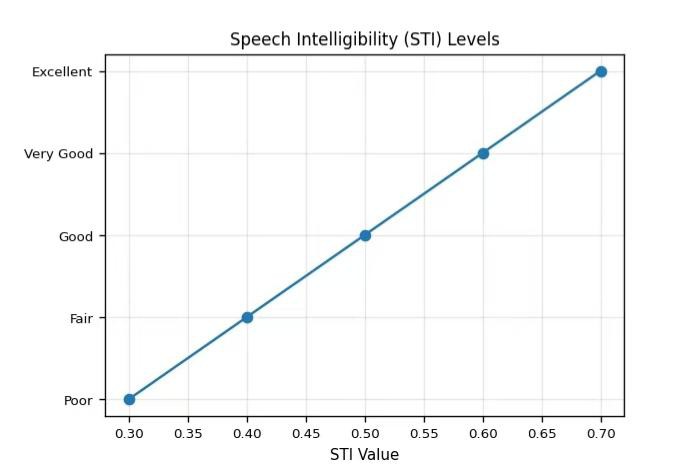

Speech Intelligibility (STI) Levels
Dialogue clarity is the top priority for the movie-going experience:
- Target STI ≥ 0.70 (Excellent)
- Premium Dolby Atmos theaters: STI ≥ 0.75
And to ensure acoustic comfort:
Recommended noise criteria level: NC-20 to NC-25 (NC-30 max)
Acoustic Solutions by Area-Wall Systems
Recommended materials:

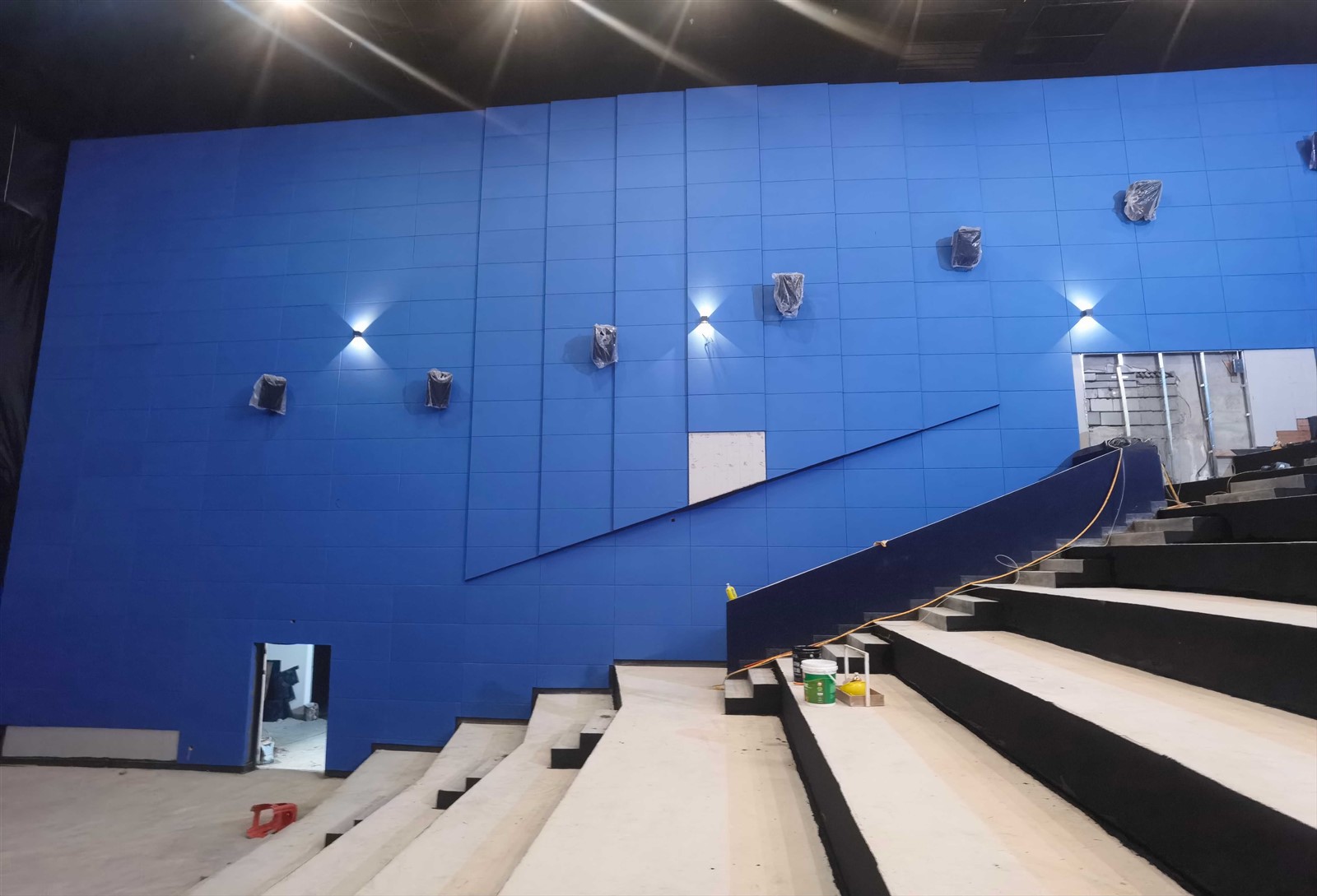

- Fabric Wrapped Acoustic Panels: It reduces low-frequency roar and bass resonance in cinemas, fixing muddy sound caused by hard walls. It minimizes sound vibration and makes dialogue clearer. Widely used on side walls to enhance surround sound and immersive viewing experience.

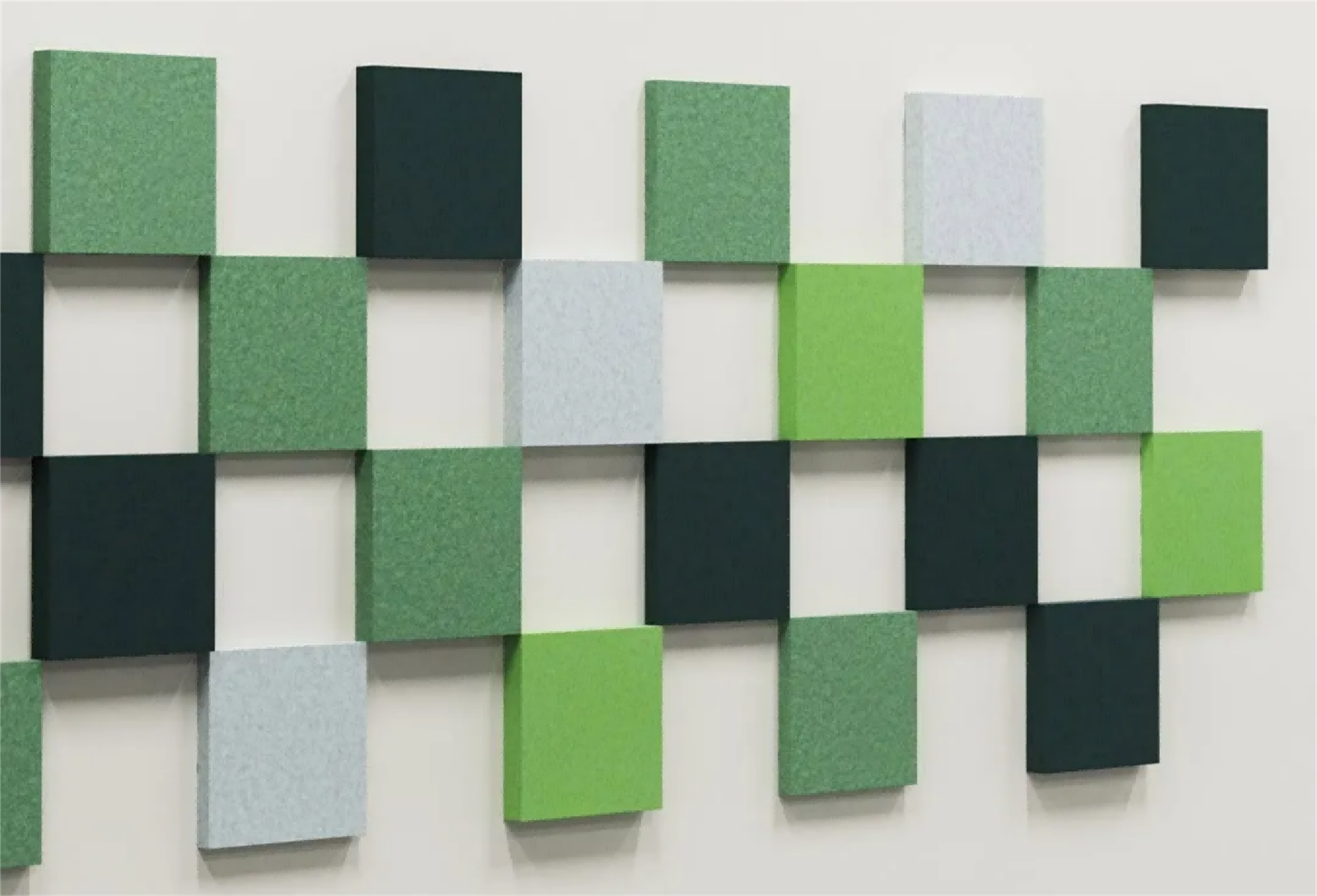

- PET Acoustic Panels: High sound absorption performance for fine noise and short echo. Eco-friendly, fire-resistant and customizable in colors and shapes. Ideal for hidden installation in cinemas, controlling reverberation without affecting viewing atmosphere.

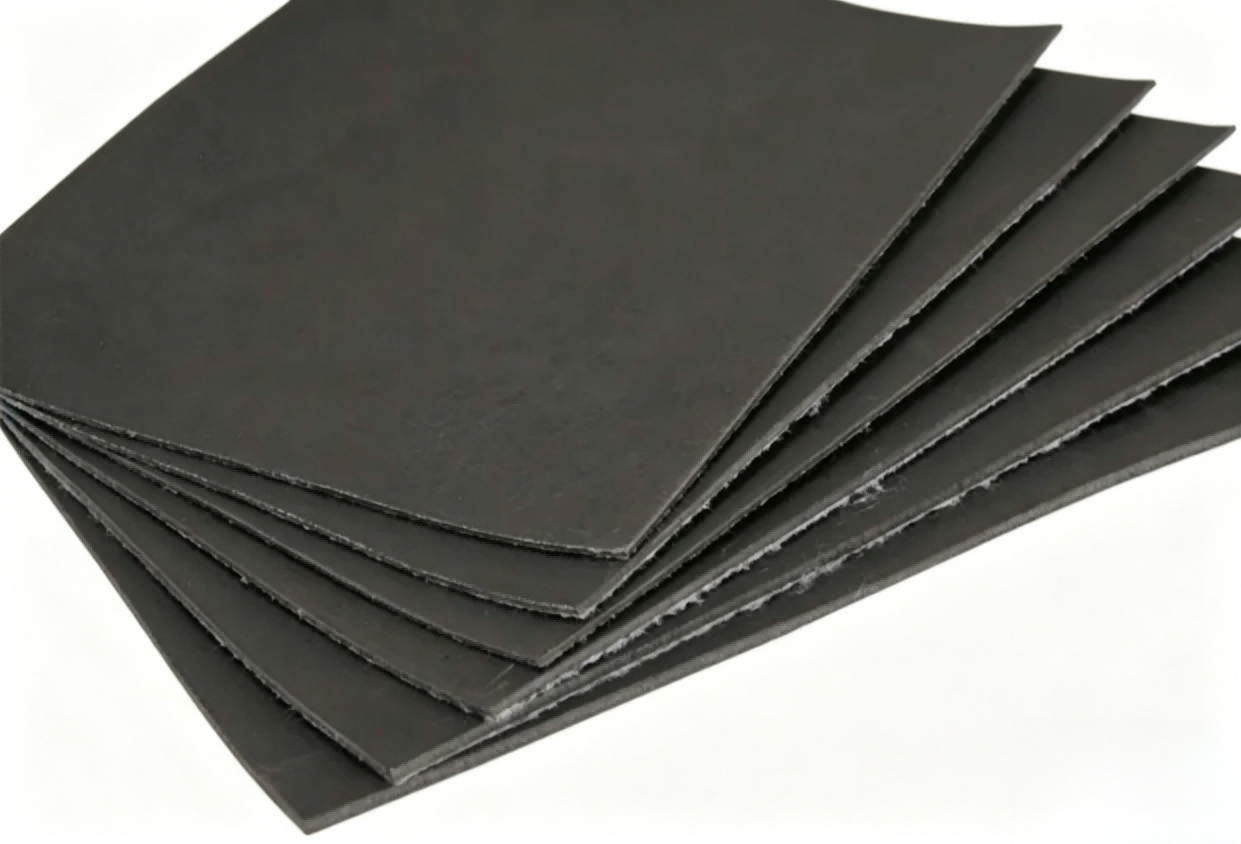

- Mass Loaded Vinyl: Installed inside partition walls to reduce vibration and structure-borne noise. It blocks outside noise from corridors and equipment rooms, prevents sound leakage between halls, and solves crosstalk and resonance problems.
Fabric Wrapped Acoustic Panels
PET Acoustic Panels
Mass Loaded Vinyl
Acoustic Solutions by Area-Ceiling Systems
Recommended materials:
- Fiberglass Ceiling Panels: Dual functions of light absorption and sound absorption, suitable for dim cinema environments. It reduces ceiling noise and air vent sound without light reflection, keeping steady indoor reverberation for better viewing.
- suspended ceiling baffles: Designed for high cinema ceilings to absorb lingering sound and bass vibration. It balances audio effect for all seats, prevents muddy top reverberation, and strengthens immersive movie experience.
Products Description
All acoustic materials for concert hall are strictly manufactured to meet international professional acoustic and safety standards, ensuring stable long-term indoor sound environment and safe indoor application.
1. Acoustic Performance: High sound absorption efficiency with NRC ≥ 0.80, balanced full-frequency absorption for low, medium and high frequency sound
2. Fire Resistance: Compliant with ASTM E84 Class A, EN 13501-1 Class B-s1,d0, fully suitable for public performance venues
3. Environmental Performance: Zero formaldehyde optional, low VOC emission, meet RoHS and REACH environmental requirements for closed indoor spaces
4. Structural Durability: Anti-aging, stable size, no deformation under long-term indoor constant temperature and humidity
5. Adaptive Performance: Moisture-proof and sag-resistant, fit high ceiling and large indoor space long-term use
6. Installation System: Modular customized size, compatible with steel frame and wall mounting system, easy installation and later maintenance
Design Philosophy
Our cinema acoustic design focuses on professional audio-visual performance, immersive space aesthetics and stable daily operation.
More than basic noise reduction, we integrate full-frequency sound absorption, structural sound insulation and sound field optimization, to prevent sound crosstalk and ensure clear and accurate surround sound inside each theater hall.
In accordance with international cinema acoustic norms, we adjust material combinations and construction plans flexibly to balance acoustic effect and project budget.
We provide two tailored solution options:
The economical solution applies partial polyester acoustic panels and fabric-wrapped panels together with black glass fiber ceiling, suitable for renovation and budget-friendly projects.
The high-end cinema solution adopts full-wall sound absorption and insulation system, plus suspended acoustic clouds on the ceiling. It realizes pure sound restoration, effective noise isolation, and matches the high-grade interior style of commercial cinemas.
