China Customized Fabric Wrapped Acoustic Panels Manufacturers Factory - Free Sample

High-NRC Sound Absorption Solutions for Architectural & Interior Projects

High-performance fabric-wrapped acoustic panels engineered for commercial interiors, educational spaces, and specialized acoustic environments. Built with high-density bio-soluble glasswool cores and acoustically transparent, flame-retardant fabrics, these panels deliver high low-to-mid frequency sound absorption while meeting stringent international building fire codes.

Acoustical Performance: NRC 0.85 to 1.05 (ASTM C423 / ISO 354)
Fire Safety Compliance: ASTM E84 Class A | EN 13501-1 Class B-s1, d0
Core Density: 60 kg/m3 to 96 kg/m3 thermosetting fiberglass core
Edge Fabrication: Resin-hardened, chemically square, bevel, or mitered edges
Dimensions: Custom cut-to-size up to 1200 mm x 2400 mm (4 ft x 8 ft)

Fabric Covered Sound Absorbing Panels For Cinema Project
Fabric covered sound absorbing panels are fully upholstered acoustic panels consisting of high‑density
sound‑absorbing inner core completely covered by acoustically‑permeable decorative...
Soundproof Fabric Wall Panels For Commercial Project
—product name：Soundproof fabric wall panels - Core Material: High‑density rigid fiberglass sound‑absorbing core - Surface Treatment: Fully wrapped acoustically permeable fabric, neatly folded...
Fabric Covered Acoustic Panels For Cinema
product name：fabric covered acoustic panels
- Core Material: High‑density rigid fiberglass
- Surface: Acoustically permeable fabric wrapping, fully wrapped edges
- Standard...
Fabric Wrapped Acoustic Wall Panels
Product Name:Fabric wrapped acoustic wall panels Standard size:600x600, 1200x600mm Standard thickness:15/20/25/50mm Material:Yellow or white glass wool Edges:45°beveling or...
Premium Fabric-Wrapped Acoustic Panels
Engineered to tame sound reflections and cut down on echo, fabric-covered acoustic panels enhance how clearly speech is understood. That’s why they are a go-to choice for spaces where acoustic...

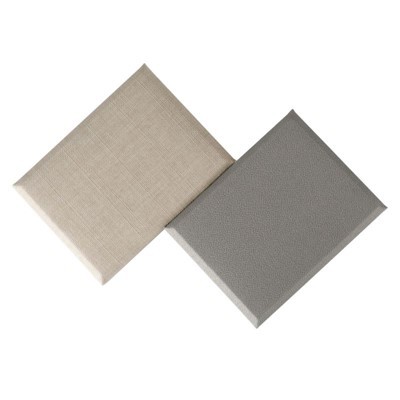

Fabric Covered Acoustic Panels
Fabric-wrapped sound-absorbing panels are designed to absorb sound reflections, reduce reverberation, and improve speech intelligibility, making them ideal for venues with high acoustic comfort...
Weave Fabric Wrapped Acoustic Panels
Auditoriums require clear acoustics. Classrooms require focused listening. Offices need a quiet environment to concentrate. Music venues absolutely need crystal-clear sound. What do these spaces...

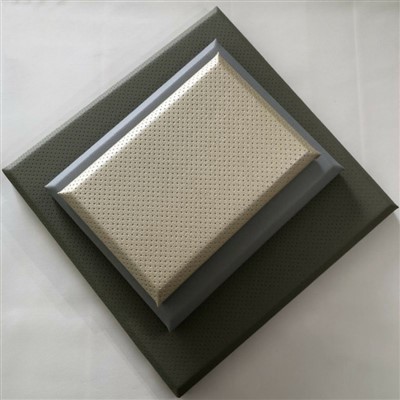

Leather Wrapped Acoustic Panel
Fabric-covered acoustic panels and Leather wrapped Acoustic Panel are designed to absorb sound reflections, reduce reverberation, and improve speech intelligibility, making them ideal for venues...
Fabric Wrapped Polyester Acoustic Panels
Fabric-wrapped polyester acoustic panels and fabric-covered acoustic panels are essentially similar in acoustic performance, differing only in their internal materials. Polyester acoustic panels...

Product Types & Edge Profiles

Core Construction & Edge Configurations
Resin-Hardened Edge (Standard): Chemical resin impregnation reinforces the fiberglass perimeter, preventing edge deformation during field handling and concealed clip installation.

Aluminum Frame Inner Core: An extruded aluminum sub-frame is embedded within the core to provide rigid structural support for large-format panels (>= 1200 mm x 2400 mm) or high-impact areas.

Wrapped Engineered Timber Edge: Internal MDF or hardwood border strips embedded for high-impact commercial corridors requiring perimeter screw-fixing or specialty trim integration.

Edge Profile Options
Square Edge (90°): Clean butt-joint layouts with minimal visible panel-to-panel seam gap.

Beveled Edge (45° / 15°): 8 mm to 15 mm chamfered edges that add visual depth and mask subtle substrate irregularities.

Radiused / Rounded Edge: Smooth 10 mm radius profile designed for high-touch interior environments.

Technical Specifications & Performance Data

Specification Parameter	25 mm (1") Panel Thickness	50 mm (2") Panel Thickness	Testing Standard / Method
Noise Reduction Coefficient (NRC)	0.85 - 0.90	1.00 - 1.05	ASTM C423 / ISO 354
Sound Absorption Class	Class B	Class A	EN ISO 11654
Core Material Density	60 - 96 kg/m3 Fiberglass	60 - 96 kg/m3 Fiberglass	Internal QC / ISO 29470
Surface Fire Rating	Class A / Class 1	Class A / Class 1	ASTM E84 / UL 723
European Fire Reaction	Class B-s1, d0	Class B-s1, d0	EN 13501-1
Formaldehyde Emission	E0 Grade / < 0.05 mg/m3	E0 Grade / < 0.05 mg/m3	EN 717-1 / ISO 16000
Thermal Resistance (R-value)	R-4.2 (hr·ft2·°F/Btu)	R-8.5 (hr·ft2·°F/Btu)	ASTM C518
Moisture Absorption	< 1.0% by volume	< 1.0% by volume	ASTM C1104
Dimensional Tolerance	Length/Width: +/- 1.0 mm	Thickness: +/- 1.0 mm	CNC Cutting Inspection

Octave Band Sound Absorption Coefficients (alpha_s)
Below is the sound absorption spectrum across standard third-octave band center frequencies:

Frequency (Hz)	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz	NRC
25 mm Thickness	0.12	0.45	0.88	0.98	0.95	0.90	0.85
50 mm Thickness	0.40	0.85	1.05	1.02	0.98	0.95	1.00

Commercial Applications

Corporate Offices & Boardrooms

Installed on primary reflective surfaces to control echo during video conferencing and open-plan workplace activities.

Auditoriums & Performing Arts Centers

Calibrated rear-wall and side-wall absorption treatments to manage low-frequency boom and mid-frequency reflection.

Cinemas & Home Theaters

High-density 50 mm panel arrays designed to linearize room response curves down to 250 Hz.

Educational Facilities & Lecture Halls

Durable wall-mounted acoustic coverage engineered to meet ANSI/ASA S12.60 classroom acoustic requirements.

Hospitality & Public Spaces

Decorative acoustic paneling for hotel lobbies, restaurants, and conference centers requiring acoustic control integrated with custom interior designs.

Customization & Installation Systems

Customization Options
Fabric Selection: Choose from acoustically transparent woven polyester, recycled wool blends, or client-supplied C.O.M. (Customer's Own Material) after acoustical permeability verification.

Custom Shapes: Precision CNC router cutting allows non-rectangular geometric layouts, including hexagons, parallelograms, and segmented wall patterns.

Digital Artwork Printing: Custom high-resolution dye-sublimation printing on acoustically transparent fabric facings without obstructing sound wave penetration into the core.

Installation Systems
Impaling Clips & Construction Adhesive
Lay out panel positioning lines on the wall substrate.
Fasten galvanized steel impaling clips into drywall or masonry studs using anchor screws.
Apply construction-grade polyurethane adhesive dots on the back of the fiberglass panel.
Press the panel firmly onto the impaling clip prongs until flush with adjacent panels.

Rotofast Anchor & Z-Clip Systems
Screw helical Rotofast anchors directly into the back core of the panel.
Mount interlocking aluminum Z-clips on the wall surface.
Hang panels by engaging panel-mounted bracket clips onto the wall-mounted Z-track for a concealed, removable attachment.

pTesting & Quality Compliance

Quality assurance controls cover raw material intake through final panel assembly. Every manufacturing batch undergoes inspection to ensure full project compliance.

01/

Flame Spread & Smoke Density: Fabrics and fiberglass cores are batch-tested to verify ASTM E84 (FS <= 25, SD <= 450) and EN 13501-1 certification.

02/

Acoustical Permeability: Fabric facings undergo air permeability testing (ASTM D737) to confirm sound energy passes into the glasswool core without surface reflection.

03/

Adhesive Bonding Integrity: Thermosetting solvent-free hot melt adhesives undergo environmental chamber testing (-20°C to +70°C) to prevent fabric delamination, wrinkling, or off-gassing over time.

04/

Batch Color Consistency: Spectrophotometer color-matching limits dye-lot variation to Delta E < 0.8 across distinct production runs.

Packaging & Project Supply Chain

The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.

Inner Protection

Each panel is shrink-wrapped in PE anti-scratch film with plastic edge protectors applied to all four corners.

Master Carton

Heavy-duty 5-ply corrugated cartons with inner styrofoam side lining.

Palletization

Fumigated solid wood or plastic pallets, corner-board reinforced, stretch-wrapped, and steel/PET strapped for forklift handling.

OEM Labeling

Custom carton markings, barcode integration, and project room-by-room sorting tags for direct site distribution.

Certificate

FAQ

Q: Can we supply our own fabric (C.O.M.) for custom panel wrapping?

A: Yes. We accept Customer's Own Material (C.O.M.) subject to prior acoustic permeability and stretch testing. Samples must pass our air flow resistance check (< 500 Pa·s/m) to ensure unhindered sound transmission into the acoustic core.

Q: What is the difference between 25 mm (1") and 50 mm (2") panels in acoustic performance?

A: 25 mm panels efficiently absorb mid-to-high frequency sound (500 Hz - 4000 Hz) with an NRC of ~0.85, ideal for standard speech control. 50 mm panels extend absorption down into the lower frequency spectrum (125 Hz - 250 Hz) with an NRC of 1.00+, necessary for music studios, auditoriums, and mechanical noise reduction.

Q: How do your panels meet local commercial fire codes in North America and Europe?

A: Both our glasswool cores and woven fabrics are individually and composite-tested. We supply full test reports for ASTM E84 Class A (USA/Canada) and EN 13501-1 Class B-s1, d0 (Europe) issued by accredited third-party laboratories (SGS / Intertek).

Q: What measures prevent fabric sagging or delamination over time?

A: We apply high-tack, solvent-free hot melt spray adhesive under automatic tension control. The fabric is folded tight around resin-hardened edges and back-stapled under calculated tension to prevent thermal-humidity sagging in non-climate-controlled spaces.

Q: What is the typical lead time for a project order of 2,000 square meters?

A: Standard manufacturing lead time is 12 to 18 working days following CAD drawing sign-off and color match confirmation. Urgent batch shipments can be staggered in containers according to the jobsite installation schedule.

Q: How do you handle dimensional tolerances for custom ceiling/wall grid patterns?

A: All core cutting and resin-edge profiling are performed on multi-axis CNC routing tables. Dimensional tolerances are held within +/- 1.0 mm, guaranteeing tight butt joints and accurate alignment across large modular wall matrices.

Guangzhou MQ Acoustic Materials Co., Ltd. is one of the most professional fabric wrapped acoustic panels manufacturers and suppliers in China, featured by quality products and low price. Welcome to buy CE approved fabric wrapped acoustic panels in stock here and get quotation from our factory. We also accept customized orders.
