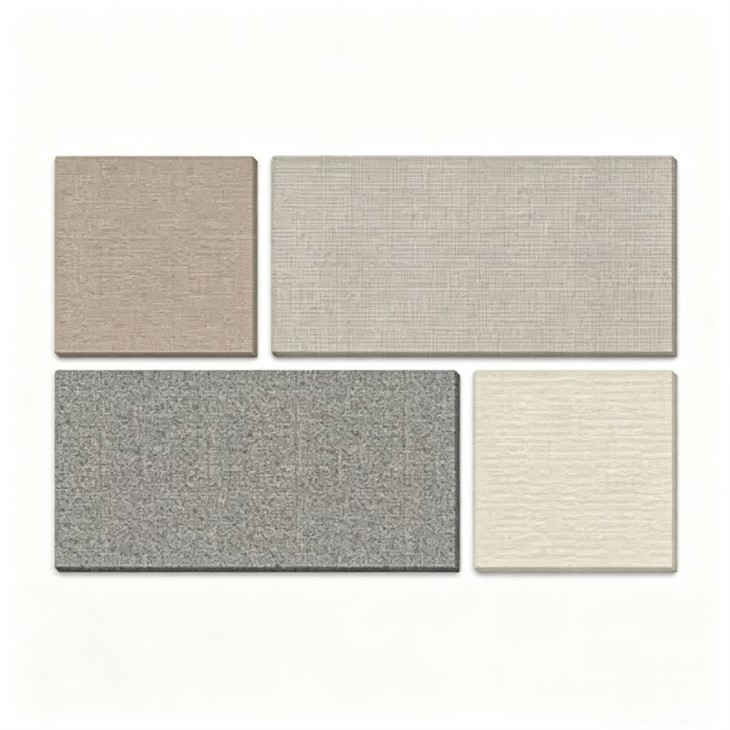

Fabric Wrapped Polyester Acoustic panels
Product Introduction

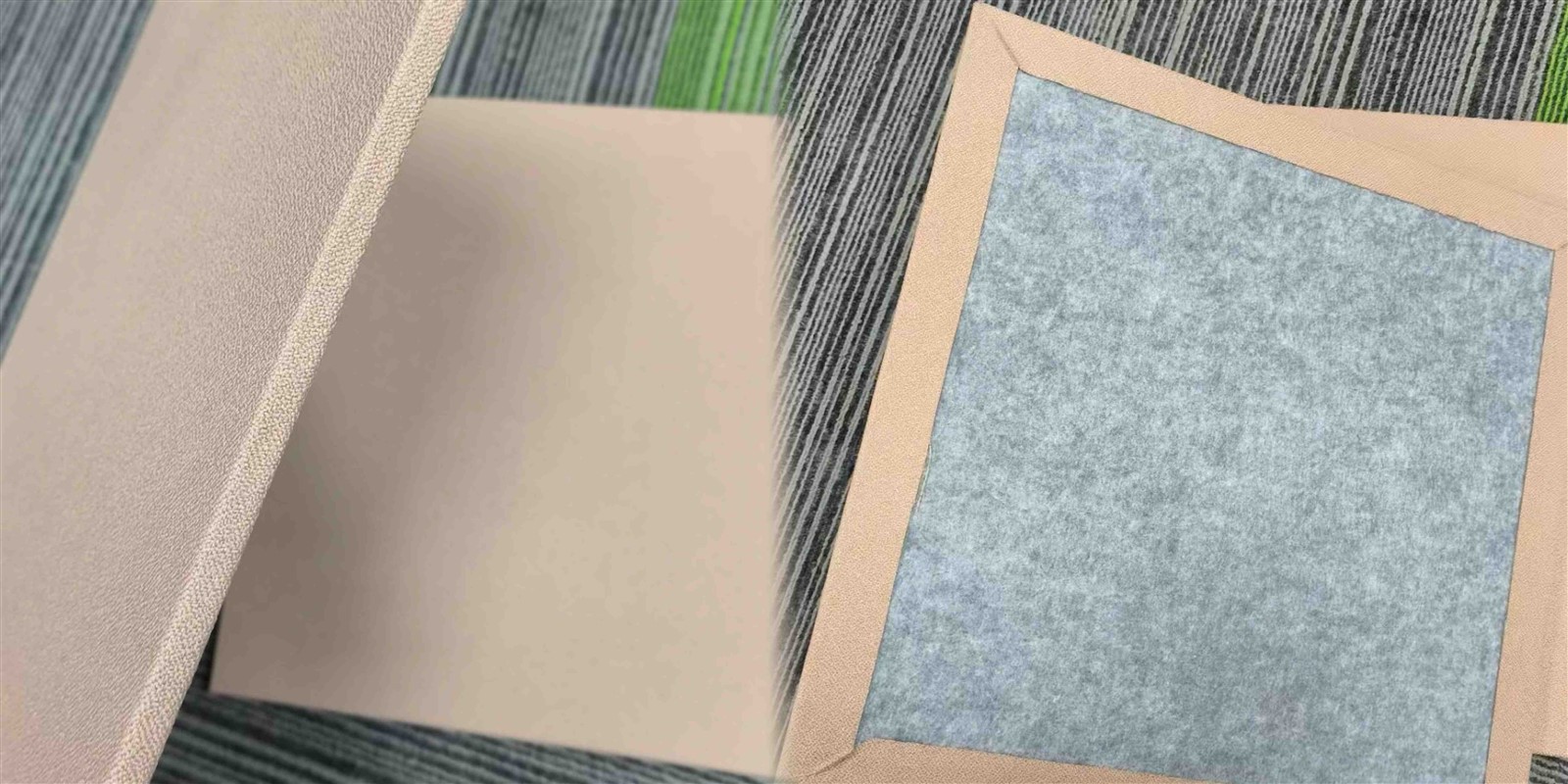

Fabric-wrapped polyester acoustic panels and fabric-covered acoustic panels are essentially similar in acoustic performance, differing only in their internal materials. Polyester acoustic panels are more environmentally friendly than glass wool, and their thickness can be significantly reduced, starting as low as 9mm. Glass wool, on the other hand, is typically used for fabric-wrapped acoustic panels, with a minimum thickness of 15mm.
Product Parameters
|
Product Name |
Fabric Wrapped Polyester Acoustic panels |
|
Standard size |
600x600, 1200x600,1200*2400mm,customized |
|
Standard thickness |
9/12/24/36/48mm |
|
Material |
Polyester acoustic panel |
|

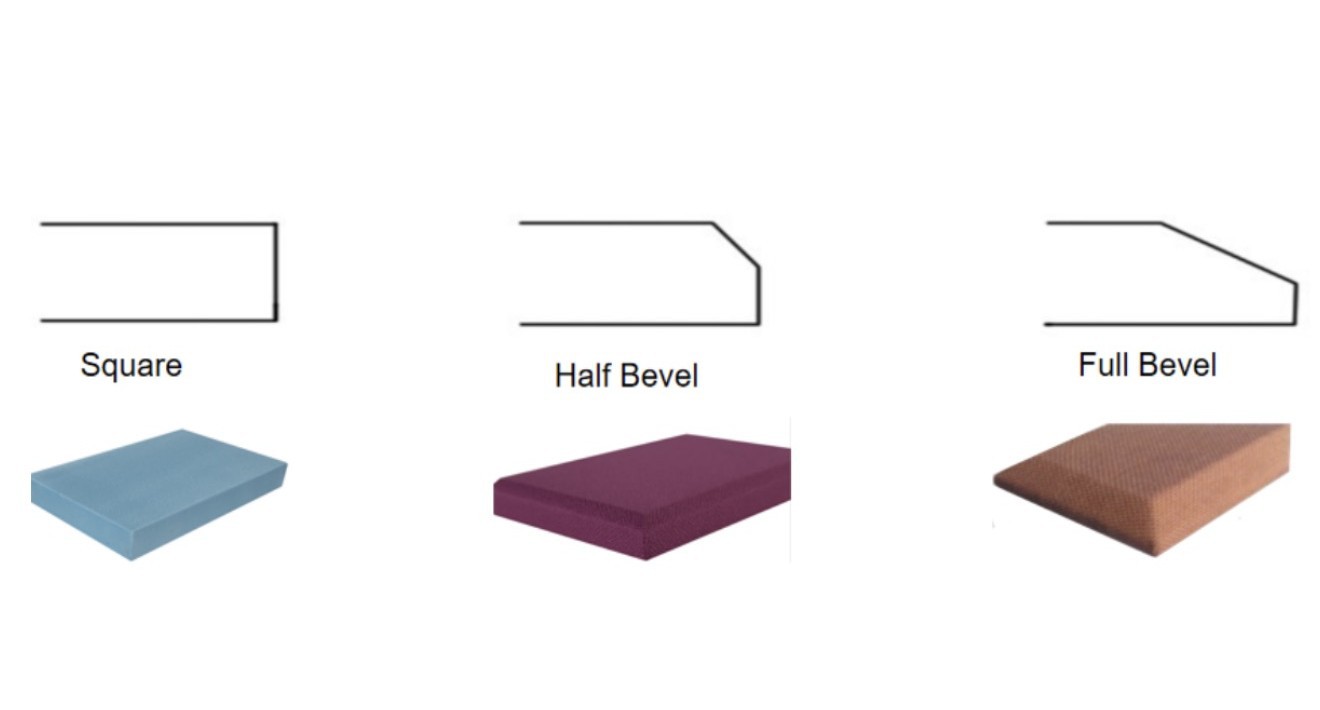

Edges |
45°beveling or 90°square |
|
Surface: |
Fabric or Leather |
|
NRC |
0.95 |
|
Flame retardant rating |
EN 13501-A1 |
|
Eco-Friendly |
Class E1 |
Acoustic performance

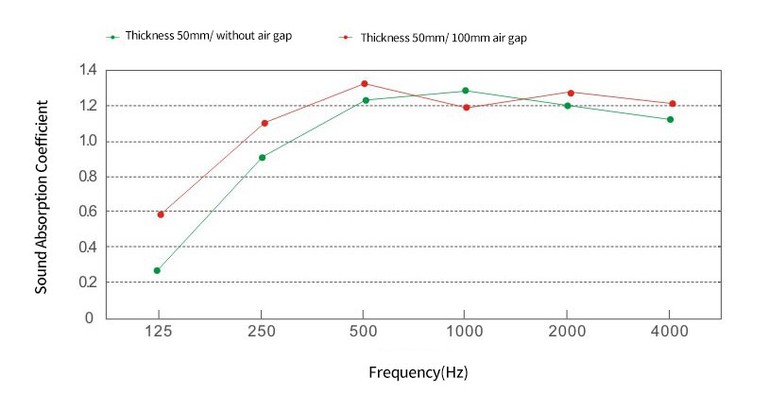

Taking a 50mm thick fabric-wrapped acoustic panel as an example, the NRC test curve in the left image shows that the fabric-wrapped panel already possesses excellent sound absorption performance, especially in the mid-to-high frequency range.
If a 100mm air gap is provided on the back of the panel, its low-frequency sound absorption effect is significantly improved, making it more suitable for environments with higher acoustic requirements, such as conference rooms and auditoriums.
Product customization

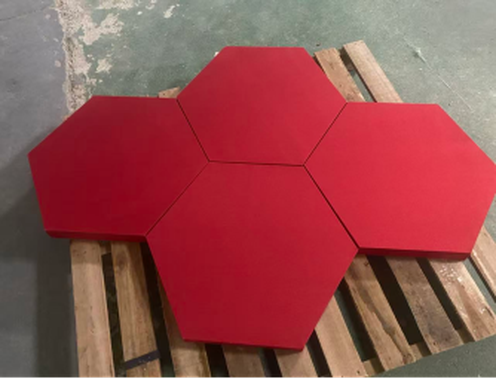

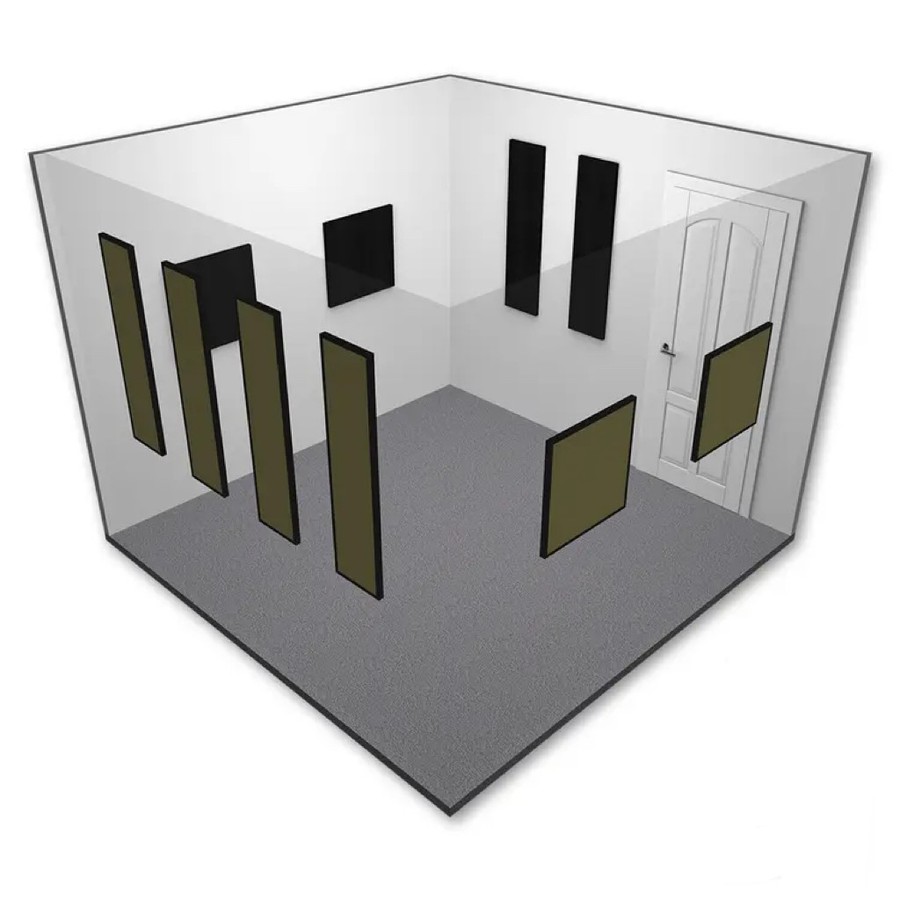

As a project-oriented supplier, we offer comprehensive customization services for fabric-covered sound-absorbing panels, including size, thickness, fabric color and type, sound absorption performance, installation system, and fire resistance rating. We can also provide advice on acoustic layout and integrate sound-absorbing panels into the overall design to meet both functional and aesthetic needs.
Products Description
Sound absorption and noise reduction
Fabric-covered acoustic panels can absorb sound and reduce noise (core function).
It can absorbs mid-to-high frequency sounds (speech, echo, reverberation), reduces spatial noise levels ,improves speech clarity
Control reverberation time and improve speech intelligibilit
Fabric-covered acoustic panels can control reverberation time (RT), preventing sound from "trailing" or sounding hollow, making the space sound cleaner and more professional.
They can also improve speech intelligibility (STI), making them particularly suitable for scenarios such as meetings, lectures, and presentations, ensuring that the speaker can "hear clearly," not just "be heard."

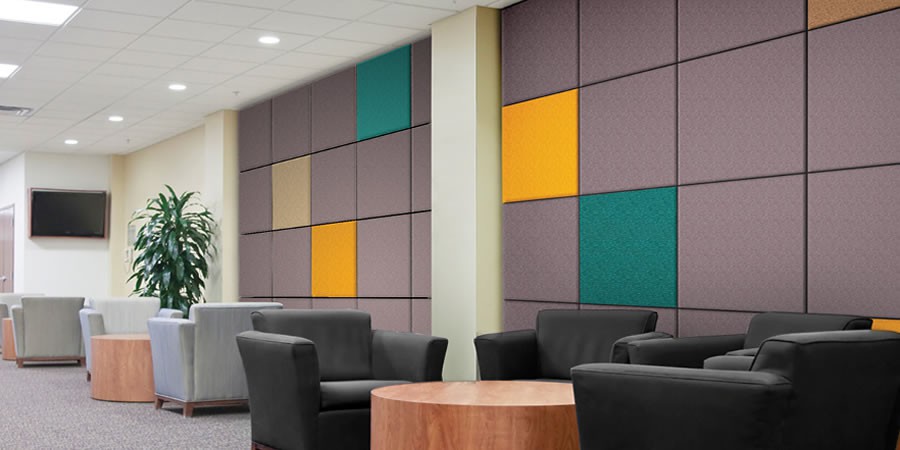

Combine acoustics and decoration
Fabric-covered acoustic panels combine acoustics and decoration.

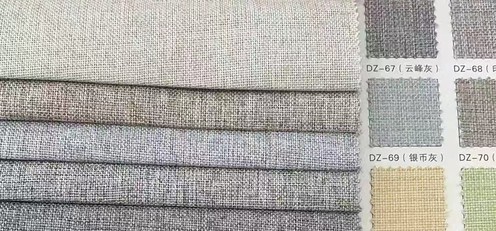

Available in multiple colors, patterns, and custom sizes. Can be used as a wall design element. Balances functionality, design, safety, and comfort.
Its features a soft, impact-resistant surface (essential for schools and children's spaces).
And also can be flame-retardant (compliant with project specifications).
Product installation

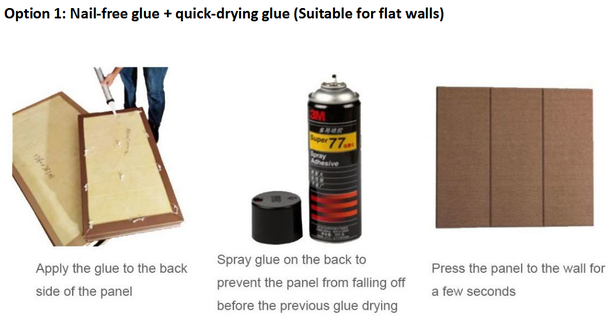

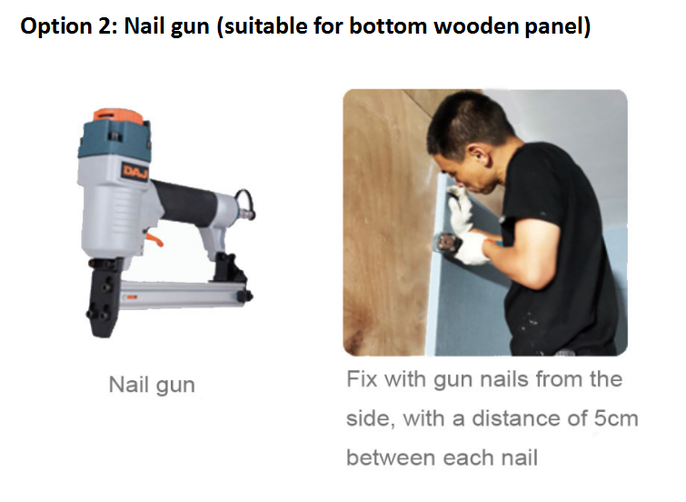

We typically offer three installation methods: 1. Nail-free glue + quick-drying glue (suitable for flat walls), 2. Nail gun (suitable for bottom wooden panels), 3. Attach impaling clips to the wall.
If the fabric-wrapped acoustic panel is large, we recommend using a combination of glue and nail gun for a more secure installation.

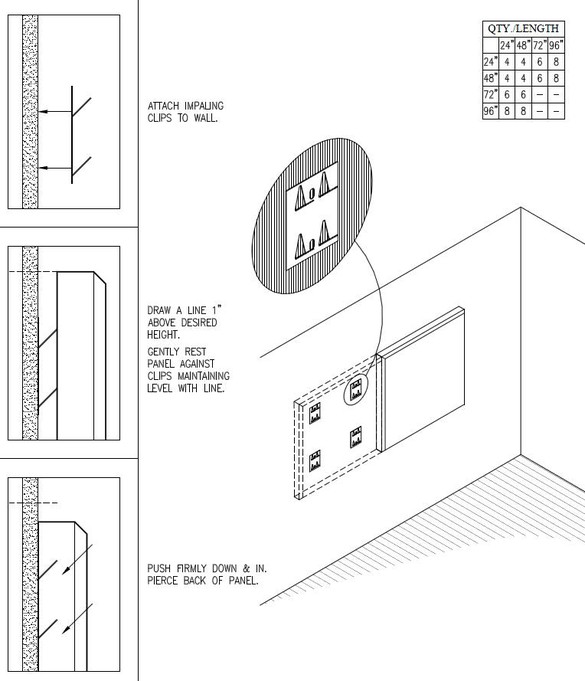

Option 3:Attach impaling clips to wall
Project Cases

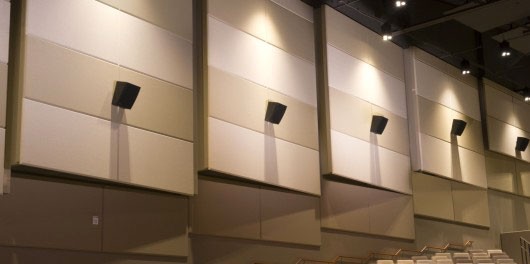

Yaohu International Sports Center
Over the course of a year, the stadium underwent a comprehensive upgrade, including the installation of Fabric Wrapped Acoustic Panels and the installation of Glass Wool as infill within the walls.
Keying Office Building
Acoustic design and renovation were carried out on the office area, reception area, and meeting rooms of the office building,installed acoustic products such as fabric-wrapped acoustic panels and polyester acoustic panels.

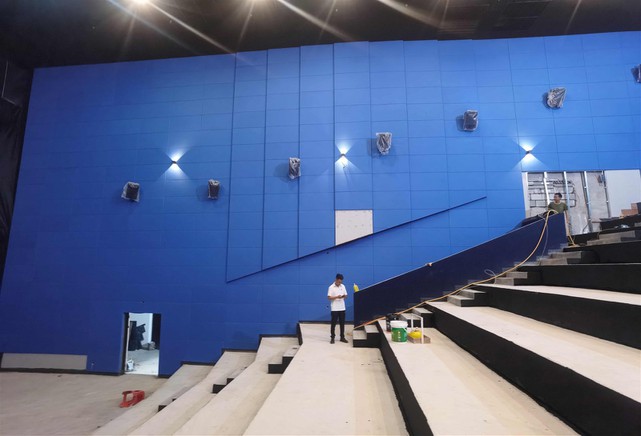

Construction of private cinemas
We install according to customer drawings, customizing the color, size, and shape of the fabric-wrapped acoustic panel to perfectly achieve the design and acoustic effects.
