Cementitious Wood Wool Acoustic Panels: Architectural Acoustic & Structural Solutions

Mineralized wood wool acoustic panels integrate natural pine wood fibers with white Portland cement binders under continuous high-pressure press processes. The open-cell porous structure mitigates sound reverberation across mid-to-high frequencies while providing structural impact resistance, thermal mass, and inherent moisture defense.

Engineered specifically for high-traffic and high-humidity spaces—including sports complexes, educational facilities, auditoriums, and parking structures—our panels carry verified Class A fire ratings, ball-impact safety certifications, and low-VOC emissions compliance for North American and European building codes.

Wood Fiber Acoustic Ceiling Tiles
Wood Fiber Acoustic Ceiling Tiles are professional ceiling acoustic boards made from wood wool fibers and inorganic cementitious materials, pressed and cured under high temperature and pressure....
Shape Of Wood Wool Acoustic Panel
The Shape of Wood Wool Acoustic Panel is a decorative acoustic panel made from natural wood fibers and inorganic cementing materials, which is formed through high-temperature and high-pressure...

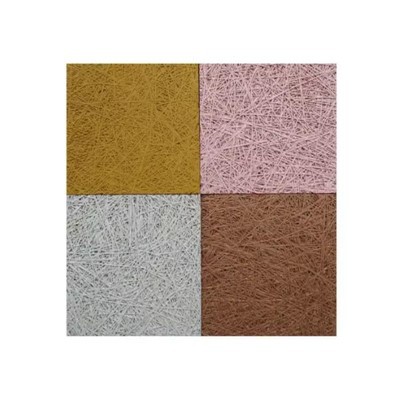

Painted Wood Wool Acoustic Panel
Painted Wood Wool Acoustic Panel is a highly decorative wood wool acoustic board with professional surface spraying treatment. It is made from natural wood wool and inorganic cementitious...
Wood Wool Ceiling Panels
Brand Name：MQ
Product Name：wood wool ceiling panels
Material：Natural： wood wool+cement
size：1220*2440mm/1200*600/600*600 Customized...
Acoustic Wood Wool Board
Brand Name：MQ
Product Name：acoustic wood wool board
Material Natural：wood wool+cement
size：1220*2440mm Customized size
thickness：15mm/20mm/25mm Customized...
wood wool acoustic wall panels
The wood wool acoustic wall panels is a multifunctional acoustic decorative panel made by cutting natural wood into slender wood fibers, adding inorganic cementitious materials (such as cement,...
Groove Wood Wool Acoustic Panel
Groove Wood Wool Acoustic Panel is an upgraded acoustic board based on traditional wood wool panels, with precision grooved surface treatment. Made from natural wood wool and inorganic...

Product Types & Material Grades

Panel Type	Fiber Specification	Binder Matrix	Primary Engineering Characteristic
Fine-Fiber Wood Wool Panels	1.0 mm ultra-fine pine fibers	White Portland cement	High visual reflectivity and smooth texture for decorative interior ceiling and wall finishes
Standard Fine-Fiber Panels	1.5 mm fine pine fibers	White Portland cement / magnesite	Balanced NRC sound absorption and mechanical durability; ideal for school spaces
Coarse-Fiber Utility Panels	2.0–3.0 mm structural fibers	Grey / white cement	High impact toughness and thermal insulation for mechanical rooms and parking structures
Composite Acoustic Panels	1.0–1.5 mm wood wool layer + rockwool / EPS core	Cement matrix bonded to mineral wool substrate	Multi-layer composite delivering extended low-frequency absorption and higher R-value

Technical Specifications & Performance Data

Physical / Engineering Parameter	Standard Metric Range	Performance / Compliance Standard
Noise Reduction Coefficient (NRC)	0.65–0.90 (direct mount to cavity-backed installation)	ASTM C423 / ISO 354
Reaction to Fire Classification	Class A (FSI max. 25, SDI max. 450) / Class B-s1, d0	ASTM E84 / EN 13501-1
Panel Density	380–500 kg/m³	EN 13168
Thermal Conductivity (Lambda)	0.065–0.090 W/(m·K)	EN 12667
Ball Impact Resistance	Passed (13 m/s steel ball impact cycle test)	EN 13964 Annex D / DIN 18032-3
Formaldehyde & VOC Emissions	Zero added formaldehyde / E0 grade	EN 717-1 / CDPH Standard Method V1.2
Standard Dimensions	1200 × 600 mm, 2400 × 600 mm, 600 × 600 mm	Length/width tolerance: ±1.0 mm
Standard Thicknesses	15 mm, 20 mm, 25 mm (flagship), 35 mm, 50 mm	Thickness tolerance: ±1.0 mm
Fungus & Mold Resistance	Zero growth (alkaline cement encapsulation)	ASTM C1338 / ISO 846

Primary Architectural Applications

01/

Sports Arenas & Gymnasiums: Wall paneling capable of absorbing mechanical ball impacts without surface indentation or fiber breakage.

02/

Educational Buildings & Lecture Halls: Ceiling and perimeter wall installations engineered to shorten RT60 decay times and enhance speech transmission index (STI).

03/

Transportation & Underground Facilities: Ceilings in subway platforms, mechanical plant rooms, and parking structures requiring moisture-resistant thermal absorption.

04/

Commercial Offices & Public Atriums: Suspended ceiling tiles or direct-fix wall systems finished with custom RAL water-based acoustic paints.

Manufacturing Precision, Customization & Installation

Factory Customization Features
Color Coating Options: Factory-applied spray finishes using inorganic water-based vapor-permeable paints (Standard White, Natural Wood, Charcoal, or matched to RAL/NCS color codes).

Edge Profile Machining: Square Edge (SE), Beveled Edge (AK - 2mm/5mm chamfer), Rebated Edge (VK), and Tongue & Groove (TG - engineered for seamless interlocking and hiding installation screw heads).

Density & Core Tuning: Custom cement-to-fiber ratios engineered for enhanced structural rigidity or lighter handling weight per project submittal.

Field Installation Methods
Direct Screw Fastening: Secure panels directly onto light-gauge steel studs or timber battens using self-tapping masonry screws with color-matched painted heads.
Suspended T-Grid Systems: Drop 15mm or 20mm square-edge/rebated tiles into standard 24mm or 15mm exposed ceiling T-bars.
Cavity Insulated Assembly: Mount 25mm wood wool panels over a 45mm metal stud cavity packed with 40-60 kg/m3 rockwool insulation to maximize bass frequency sound absorption.

Quality Control & Compliance Protocols

Every production run undergoes mechanized fiber drying, automated weighing, press curing, and continuous inline dimensional monitoring.

[Debarking & Precision Shredding] -> [Mineralization & Cement Slurry Mixing] -> [Continuous Hydraulic Pressing (65C - 80C)] -> [Controlled Chamber Curing (14 Days)] -> [Edge Milling & Spray Painting] -> [Pallet Packaging]

Fiber Mineralization Control: Raw wood fibers are treated with sodium silicate and calcium chloride prior to cement mixing, turning the wood cellulose non-combustible and immune to rot.

Curing & Moisture Stabilization: Panels undergo a 14-day controlled humidity curing process to bring internal moisture content below 10%, preventing shrinkage or bow after installation.

Batch Testing: Structural flexural strength (EN 12089) and dimensional squareness checks are performed on 1 out of every 100 panels off the milling line.

Packaging, Minimum Order Quantities & Project Supply

Export Packaging Integrity

Panels are stacked flat on reinforced ISPM 15 heat-treated wood pallets, separated by edge protectors, wrapped in heavy-gauge polyethylene stretch film, and steel-strapped for long-haul container shipping.

Minimum Order Quantity (MOQ)

300 m2 for standard natural/white finished panels; 800 m2 for custom RAL colors or non-standard edge profiles.

Production Lead Time

12 to 18 business days for 20ft / 40ft High Cube container orders (approx. 800 m2 - 1,800 m2 depending on panel thickness).

Project Engineering Support

Submittal packages provided upon request, including acoustic test certificates, MSDS sheets, CAD shop drawings, and physical sample boxes.

Certificate

FAQ

Q: How does the choice of binder (White Portland Cement vs. Magnesite) affect panel performance?

A: White Portland cement binders offer superior moisture resistance, higher structural compression strength, and enhanced dimensional stability in humid environments like indoor pools or semi-exposed soffits. Magnesite binders provide a slightly lighter weight and smoother surface texture, suitable for standard climate-controlled interior office spaces.

Q: What NRC rating can be achieved in a typical wall installation?

A: A 25mm thick wood wool panel direct-mounted to a solid wall yields an NRC of approximately 0.65. When installed over a 50mm air cavity filled with 40 kg/m3 mineral wool insulation, the sound absorption coefficient increases to NRC 0.85 - 0.90, heavily absorbing mid and low frequencies.

Q: Do these panels shed wood fibers or generate dust over time?

A: No. The factory mineralization process coats every individual pine fiber in a cement matrix. This prevents fiber fraying, flaking, or dusting during handling, installation, or long-term operational air movement.

Q: Can wood wool panels be installed in high-humidity areas like indoor swimming pools?

A: Yes. Because the pine fibers are fully encapsulated in mineralized cement, the panels do not absorb atmospheric moisture, warp, or support mold growth (tested under ASTM C1338). For pool environments, use stainless steel fasteners and hot-dip galvanized steel framing.

Q: Are factory-painted panels acoustically compromised compared to natural finish panels?

A: No. We apply low-viscosity, water-based inorganic acoustic paint using automated atomized spray nozzles. This ensures the color coats the fiber surfaces without clogging the open air voids essential for sound absorption.

Q: What certifications are supplied for building permit approvals?

A: We supply complete third-party laboratory test reports including ASTM E84 (Class A Fire Rating), EN 13501-1 (Class B-s1, d0), ASTM C423 / ISO 354 (Acoustics), and EN 13964 Annex D (Ball Impact Resistance).

Guangzhou MQ Acoustic Materials Co., Ltd. is one of the most professional wood wool panels manufacturers and suppliers in China, featured by quality products and low price. Welcome to buy CE approved wood wool panels in stock here and get quotation from our factory. We also accept customized orders.
