Acoustic Office Booths - High-Privacy Soundproof Pods for Open-Plan Workplaces & Enterprise Fit-Outs

Engineered acoustic office booths designed for open-plan corporate environments, educational institutions, and commercial fit-out projects. Built with multi-layer acoustic sandwich panels, laminated sound control glass, and low-decibel active ventilation systems, these booths deliver verified speech privacy and thermal comfort while meeting international electrical and fire safety standards.

Speech Privacy Performance: Sound Insulation Level D_nc_w + C_tr >= 30 dB (ISO 23351-1 verified)
Ventilation Efficiency: Dual-fan active air exchange delivering 45 ACH with internal ambient noise < 35 dB
Acoustic Glass Assembly: 10 mm to 12 mm acoustic laminated safety glass with PVB damping interlayers

Sound Proof Office Booth
Product Name：Sound Proof Office Booth
Capacity：1 Person / 2 Persons / 3-4 Persons Meeting Pod / Customized
Size：custom External and Internal
Frame Material：Heavy-Duty...
Single Person Soundproof Booth
Soundproof booths offer a way to create private, low-noise spaces in public environments, improving the privacy of conversations, productivity, and acoustic comfort in offices, hotels, and other...
Two-Person Acoustic Booth
Soundproof booths offer a way to create private, low-noise spaces in public environments, improving the privacy of conversations, productivity, and acoustic comfort in offices, hotels, and other...

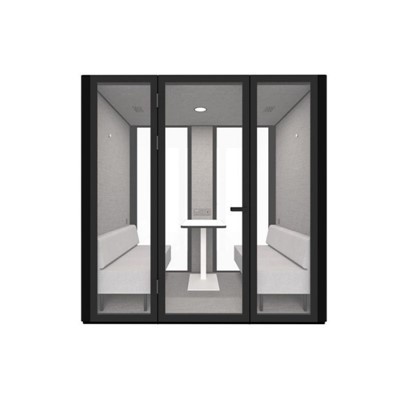

Multi-Person Acoustic Booth
Soundproof booths offer a way to create private, low-noise spaces in public environments, improving the privacy of conversations, productivity, and acoustic comfort in offices, hotels, and other...

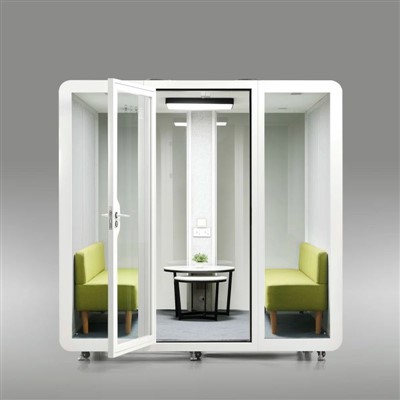

Acoustic Meeting Booths
Soundproof booths offer a way to create private, low-noise spaces in public environments, improving the privacy of conversations, productivity, and acoustic comfort in offices, hotels, and other...

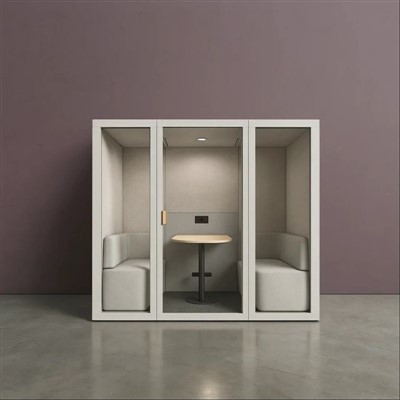

Soundproof Pods Office
Soundproof booths offer a way to create private, low-noise spaces in public environments, improving the privacy of conversations, productivity, and acoustic comfort in offices, hotels, and other...

Product Types & Spatial Configurations

Single-Person Focus & Call Pods

Compact Solo Booth: Designed for individual video conferencing and focused deep work. Footprint optimized for standard floor layouts (approx. 1000 mm x 1000 mm). Features an integrated sit-stand or fixed writing shelf.

Two-to-Four Person Huddle Booths

Collaborative Team Pod: Medium-format enclosure engineered for dual-user video interviews or small team syncs. Incorporates acoustic upholstered bench seating, central power hubs, and reinforced floor load distribution.

Executive Meeting Conference Pods

Large Group Acoustic Room: Fully enclosed conference module supporting 4 to 6 occupants. Features independent variable lighting zones, expansive acoustic glass panels, and dedicated heavy-duty ceiling air exhaust channels.

Technical Specifications & Performance Data

Technical Parameter	Single Solo Booth	Two-Person Huddle Booth	Four-to-Six Person Conference Pod	Test Standard / Method
Speech Privacy Rating (ISO)	D_nc_w = 32 dB	D_nc_w = 30 dB	D_nc_w = 30 dB	ISO 23351-1
Acoustic Glass Thickness	10 mm Laminated Safety	10 mm Laminated Safety	12 mm Acoustic Laminated	ISO 12543 / EN 12600
Exterior Wall Construction	4-Layer Sandwich Composite	4-Layer Sandwich Composite	4-Layer Sandwich Composite	Internal QC Acoustic Layering
Air Exchange Rate (ACH)	48 Air Changes / Hour	42 Air Changes / Hour	36 Air Changes / Hour	ISO 5801 Fan Flow Test
Ventilation Sound Level	< 32 dB(A) at 1 meter	< 34 dB(A) at 1 meter	< 36 dB(A) at 1 meter	ISO 3744 Sound Pressure
Internal Lighting (Lux)	> 500 Lux (Adjustable)	> 500 Lux (Adjustable)	> 500 Lux (Adjustable)	ISO 8995-1 Workplace Lighting
Electrical Power Input	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	100-240V AC, 50/60 Hz	UL / CE / ETL Certified Sockets
Dimensional Tolerance	Length/Width: +/- 1.0 mm	Length/Width: +/- 1.0 mm	Length/Width: +/- 1.5 mm	CNC Frame Machining

Commercial Applications

01/

Open-Plan Corporate Workplaces: Deployed across floor plates to absorb conversational chatter and provide private breakout zones for impromptu phone calls.

02/

Co-Working & Shared Office Spaces: Modular, movable workspace assets that allow operators to monetize private call real estate without permanent drywall construction.

03/

Financial & Legal Institutions: High-privacy meeting enclosures engineered to protect sensitive client discussions and comply with corporate data/speech security policies.

04/

Educational & Research Facilities: Quiet study and virtual examination pods installed in university libraries and campus media centers.

Customization & Installation Systems

Customization Options
Exterior & Interior Finishes: High-durability powder-coated aluminum framing paired with sound-absorbing felt wall panels, textured architectural laminates, or custom-colored acoustic fabrics.

Power & Data Integration: Configurable desktop power modules featuring standard regional AC sockets (US, UK, EU, AU), USB-A/USB-C fast charging, and RJ45 network pass-through ports.

Accessory Add-ons: Ergonomic magnetic mount monitor arms, integrated coat hooks, cable management raceways, and occupancy sensor light switches.

Modular Installation Workflow
Base Platform Leveling: Position the heavy-duty leveling base frame and adjust corner feet using a digital spirit level to ensure a plumb structural foundation.

Interlocking Wall Panel Erection: Slot tongue-and-groove composite wall panels into the extruded aluminum corner posts and secure via internal cam-lock fasteners.

Acoustic Glass Door Hanging: Mount the pre-hung heavy glass door leaf onto reinforced pivot hinges, ensuring continuous magnetic perimeter gasket compression.

Ceiling Plenum & Power Plug-in: Drop in the integrated ceiling unit containing silent ventilation fans, LED drivers, and master power whip for direct wall outlet connection.

Testing & Quality Compliance

Quality assurance controls cover raw material intake, panel pressing, electrical pre-wiring, and pre-shipment structural trial assembly.

Speech Privacy & Attenuation Tests

Booth prototypes undergo ISO 23351-1 acoustic testing in reverberation chambers to quantify speech level reduction from inside to outside.

Electrical Safety Certification

All internal wiring harnesses, circuit breakers, power sockets, and LED drivers comply with UL, CE, and ETL safety regulations.

Environmental & VOC Emission

Interior felt fabrics and engineered composite wood substrates are tested for low chemical emissions, meeting E0 and GREENGUARD standards.

Hinge & Door Durability Cycles

Door pivot mechanisms and magnetic seals undergo 100,000 open-close mechanical stress test cycles to verify structural longevity.

Packaging & Project Supply Chain

Flat-Pack Modular Design

Units are disassembled into flat components to maximize 40ft HQ container shipping density and reduce ocean freight costs.

Protective Interlayers

Glass panels are encased in custom EPE foam edge protectors and crated in fumigation-free plywood shipping boxes.

Hardware & Accessory Boxing

Fasteners, power cables, and installation tools are segregated into labeled component kits matching the installation manual.

Project Barcoding

Carton labeling includes room-destination numbers and assembly sequence codes for rapid distribution across commercial job sites.

Certificate

FAQ

Q: How do your acoustic booths achieve speech privacy ratings in loud open offices?

A: Our booths use a multi-layer sandwich construction combining high-density sound-absorbing felt, air damping cavities, and mass-loaded acoustic barriers. Coupled with 10 mm laminated acoustic glass and perimeter magnetic door seals, they achieve a verified speech privacy rating of D_nc_w >= 30 dB per ISO 23351-1.

Q: Is the ventilation system quiet enough for continuous use during phone calls?

A: Yes. Dual brushless active exhaust fans are housed in an internal acoustic labyrinth muffler plenum. This design refreshes cabin air at over 40 changes per hour while keeping internal mechanical noise below 35 dB(A), ensuring zero background hum on microphone calls.

Q: Do the electrical sockets and lighting meet local building standards in North America and Europe?

A: All integrated electrical components, including USB chargers, AC outlets, power distribution units, and LED drivers, carry UL, CE, or ETL certifications. We configure the internal wiring harness according to the destination country's voltage requirements (110V or 220V).

Q: Can the office booths be disassembled and relocated if the office layout changes?

A: Yes. The modular interlocking frame and cam-lock panel connections allow the entire booth to be completely disassembled, relocated, and reassembled on a new floor plate without damaging the structural components or wall finishes.

Q: What is the standard manufacturing lead time for a project order of 20 booths?

A: Standard production lead time is 18 to 25 working days following shop drawing confirmation and fabric color selection. We can stagger container shipments to align with phased office handover dates.

Q: What site preparation is required prior to installing the acoustic booths?

A: The installation site requires a flat, level finished floor (tolerance within +/- 2 mm) and a standard wall or floor electrical outlet nearby to supply power to the booth's main ceiling power whip. No permanent floor anchoring is required.
