High-STC Operable Acoustic Walls for Ballrooms, Conference Centers & Multi-Purpose Spaces

Engineered movable partition walls designed for upscale hotels, convention centers, corporate headquarters, and educational facilities. Built with heavy-duty overhead steel/aluminum tracks, multi-layer acoustic composite panels, and mechanical retractable top-and-bottom seals, these systems deliver high sound attenuation and effortless manual or automated space reconfiguration.

Acoustical Sound Attenuation: STC 38 to 55 dB (Tested per ASTM E90 / ISO 717-1)
Track Load Capacity: Heavy-duty steel or extruded structural aluminum tracks rated up to 700 kg per panel suspension point
Panel Thickness Options: 80 mm, 100 mm, and 120 mm structural multi-layer sandwich profiles
Seal Mechanism: Mechanical crank-operated or motorized retractable acoustic sweeps (25 mm travel clearance)
Maximum Wall Height: Engineered for clear spans up to 15,000 mm (approx. 50 ft)

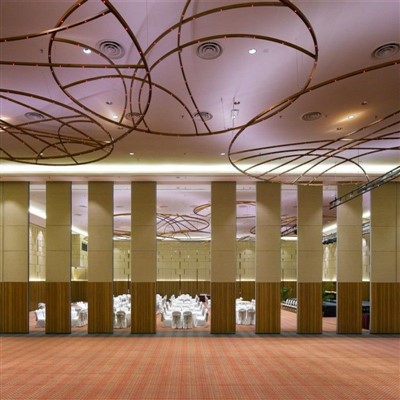

Semi-automatic Movable Partition
Semi-automatic Movable Partition is designed for commercial and office projects with high usage frequency and a pursuit of convenient operation. It retains the flexible advantage of manual pushing...
Automatic Movable Partition
Automatic Movable Partition Wall is an intelligent acoustic solution for high-end large spaces, suitable for five-star hotel banquet halls, international conference centers, group headquarters...
Manual Movable Partition
Manual Movable Partition is the most mature acoustic separation system currently applied in various space renovation and decoration projects. It achieves door panel movement and sealing by pure...

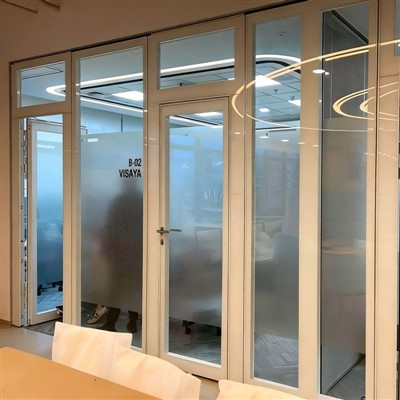

Folding Glass Partition Walls
Folding Glass Partition Walls are modern office and commercial space partitioning products centered around transparent lighting and acoustic insulation. They use tempered/ laminated/ insulating...

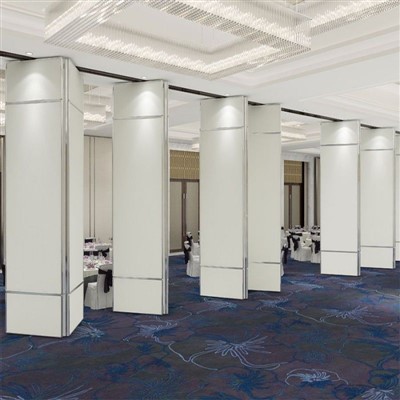

Soundproof Movable Partition
The soundproof movable partition is a flexible, foldable modular wall that can divide one space into two or combine them for multi-purpose use. It consists of an aluminum alloy frame, soundproof...

Technical Specifications & Performance Data

Technical Parameter	Series 80 Partition	Series 100 Partition	Series 120 Partition	Test Standard / Method
Sound Transmission Class (STC)	STC 38 - 43	STC 48 - 53	STC 53 - 55	ASTM E90 / ISO 717-1
Acoustic Rating (Rw)	38 - 42 dB	48 - 52 dB	52 - 55 dB	ISO 140-3 / ISO 717-1
Standard Panel Thickness	80 mm	100 mm	120 mm	Internal QC Dimension Check
Max Panel Weight Allowance	250 kg / panel	450 kg / panel	700 kg / panel	Structural Load Testing
Retractable Seal Stroke	23 mm Top / Bottom	25 mm Top / Bottom	30 mm Top / Bottom	Mechanical Cycle Testing
Track Material & Finish	Extruded Anodized Aluminum	Heavy Steel / Anodized Alu	Structural Steel Truss + Alu	ASTM B221 / ISO 209
Surface Fire Rating	Class A / Class 1	Class A / Class 1	Class A / Class 1	ASTM E84 / EN 13501-1
Dimensional Tolerance	Height/Width: +/- 1.5 mm	Height/Width: +/- 1.5 mm	Height/Width: +/- 2.0 mm	CNC Machining Inspection

Commercial Applications

01/

Hotels & Banquet Halls: Deployed across large column-free ballrooms to subdivide spaces for simultaneous wedding banquets and corporate conferences.

02/

Convention & Exhibition Centers: Multi-bay operable walls designed for flexible exhibition booth compartmentalization and rapid hall reconfiguration.

03/

Corporate Headquarters & Boardrooms: Executive meeting room partitions featuring integrated markerboards, tackable fabric finishes, and pass-through acoustic doors.

04/

Educational Institutions & Universities: Flexible lecture hall dividers that convert large open auditoriums into independent multi-class teaching zones.

Customization & Installation Systems

Customization Options
Architectural Surface Finishes: High-pressure laminates (HPL), acoustic wood veneer panels, commercial-grade wall carpets, or back-painted glass facings.

Pass-Through Access Doors: Single-leaf or double-leaf inset pass doors incorporating matching acoustic seals, panic hardware, and self-closing hydraulic hinges.

Control Modes: Manual hand-crank mechanical extension vs. fully motorized automated vertical seal deployment controlled via wall-mounted keypads.

Installation & Structural Workflow
Overhead Structural Subframe Verification: Inspect site steel structural drop-rods and overhead beam deflection limits (must not exceed L/500 under full partition dead load).

Track Alignment & Leveling: Precision-bolt structural aluminum or steel track sections to overhead support brackets, leveling joints to within +/- 0.5 mm using laser alignment tools.

Panel Trolley Suspension: Hoist individual partition panels onto the track trolley assemblies, verifying smooth multi-directional rolling and clearance.

Perimeter & Vertical Joint Calibration: Adjust top and bottom mechanical drop-seals and vertical magnetic interlocking profiles to ensure zero acoustic flanking gaps across the entire wall matrix.

Testing & Quality Compliance

Acoustic Transmission Testing

Panel prototypes undergo full-scale acoustic wall testing in accredited chambers per ASTM E90 to verify STC ratings across all third-octave frequency bands.

Mechanical Cycle Endurance

Trolley roller bearings and internal gearbox seal mechanisms undergo 50,000 continuous extension-retraction stress cycles to verify wear resistance.

Structural Deflection & Wind Load

Overhead track profiles are stress-tested under maximum load conditions to prevent trolley binding or track distortion.

Pre-Shipment Factory Trial Assembly

Entire partition walls are fully assembled in our manufacturing bay to check numbering sequences, locking tolerances, and trim alignments before crating.

Packaging & Project Supply Chain

Track Bundling

Structural steel and aluminum track profiles are bundled with heavy protective timber framework, plastic end caps, and steel strapping.

Panel Crating

Individual acoustic panels are wrapped in anti-scratch PE film, edged with high-density EPE foam protectors, and secured inside vertical fumigated plywood crates.

Hardware & Accessory Boxing

Trolley assemblies, handles, drop seals, and installation fasteners are segregated into waterproof marked hardware boxes.

CAD Shop Drawing Labeling

Every panel and track section is numbered according to the project shop drawing layout to ensure rapid jobsite sorting and installation.

Certificate

FAQ

Q: How do movable partition walls achieve high STC sound ratings without permanent walls?

A: Our partitions utilize a multi-layer sandwich structure containing mass-loaded barriers, high-density acoustic insulation cores, and heavy steel frames. When extended, top and bottom mechanical drop-seals (delivering up to 30 mm vertical travel) compress tightly against the floor and track, sealing out sound flanking paths to achieve ratings up to STC 55.

Q: Can a single person easily operate a large multi-panel operable wall?

A: Yes. Despite each panel weighing up to several hundred kilograms, the load is carried entirely by precision ball-bearing steel roller trolleys running inside rigid overhead tracks. Operators can easily push and glide panels along the track manually, or use an optional motorized system for automatic positioning.

Q: What overhead structural support is required before installing the track system?

A: The overhead track requires a rigid structural support system (such as building steel beams or concrete slabs) capable of supporting the total dead weight of the wall plus safety factors, with a maximum deflection limit of L/500 under full load. Our engineering team provides detailed reaction force calculations for every project.

Q: How are panel vertical joints sealed to prevent sound leakage between rooms?

A: Adjacent panels utilize heavy-duty interlocking tongue-and-groove aluminum profiles embedded with multi-layer magnetic rubber seals. When the panels are locked in line, the magnetic strips snap together tightly to form an airtight acoustic barrier across the vertical seam.

Q: Can we include a regular walkthrough door (pass door) within the movable wall?

A: Yes. We can integrate single or double pass-through doors directly into the partition run. These doors feature matching acoustic drop seals, heavy-duty hinges, and optional panic hardware, allowing room entry without moving the main partition wall.

Q: What is the standard manufacturing lead time for a custom hotel ballroom partition project?

A: Standard production lead time is 20 to 28 working days following final shop drawing approval, size verification, and finish color confirmation. We supply detailed 2D/3D CAD installation drawings to support on-site contractor execution.
