Semi-automatic Movable Partition

Guangzhou MQ Acoustic Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of semi-automatic movable partition in China, specialized in providing high quality customized products with low price. If you're going to buy durable semi-automatic movable partition made in China, welcome to get pricelist from our factory.

Semi-automatic Movable Partition is designed for commercial and office projects with high usage frequency and a pursuit of convenient operation. It retains the flexible advantage of manual pushing and pulling, while using electric means to achieve top and bottom sealing and telescoping. It avoids the complexity of manual operation and does not require the high cost of a fully automatic system. It is a balanced acoustic partition solution that combines experience, sound insulation, and cost. It is suitable for medium-sized meeting rooms, hotel banquet halls, training institutions, corporate headquarters office areas, and other places that require efficient space switching.

Products Description

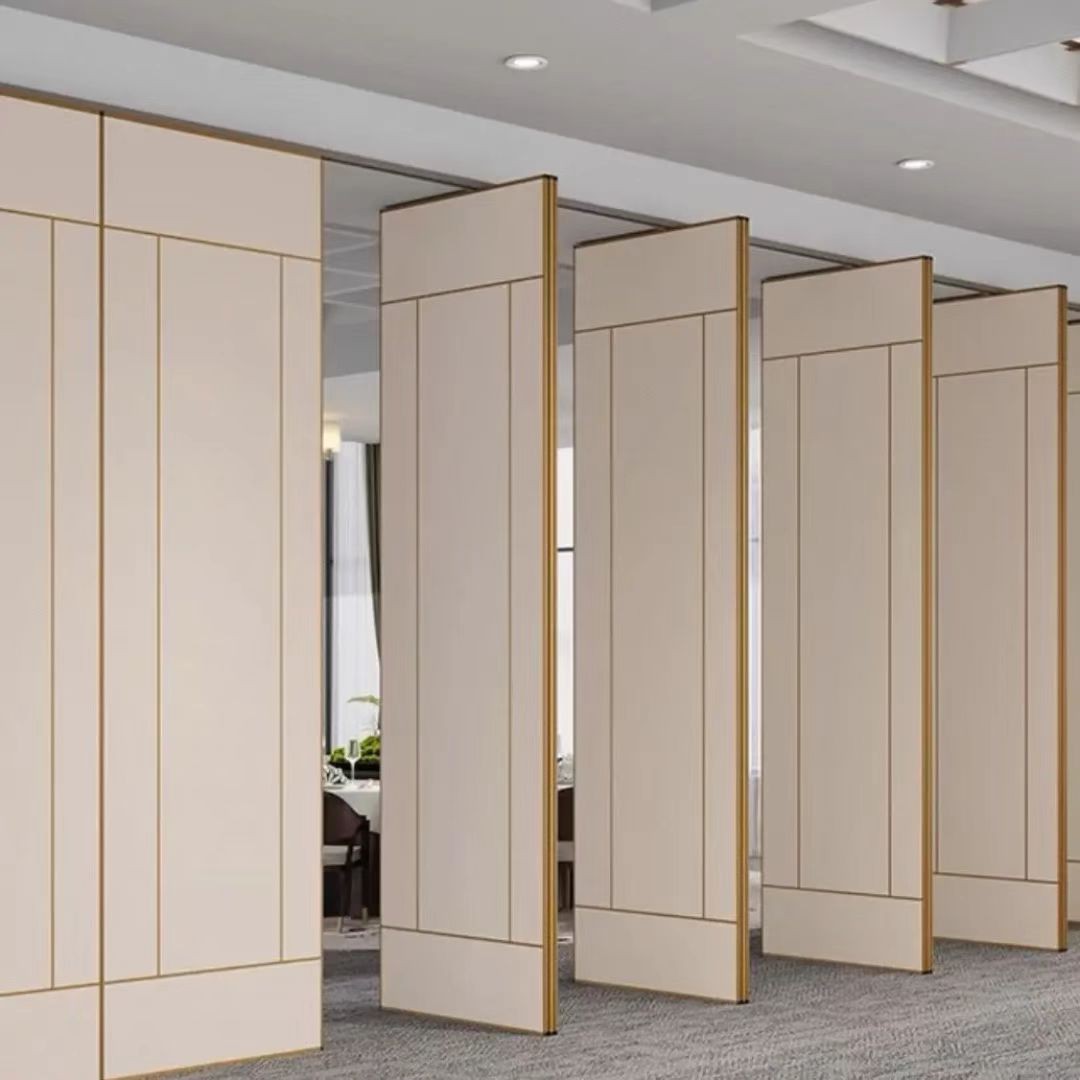

1. Stable and reliable sound insulation effect

After Semi-automatic Movable Partitionis closed, the top and bottom sealing strips are automatically extended and pressed by the motor, ensuring uniform and consistent sealing force. This structural design reduces the gaps caused by improper manual operation, achieving an overall sound insulation.

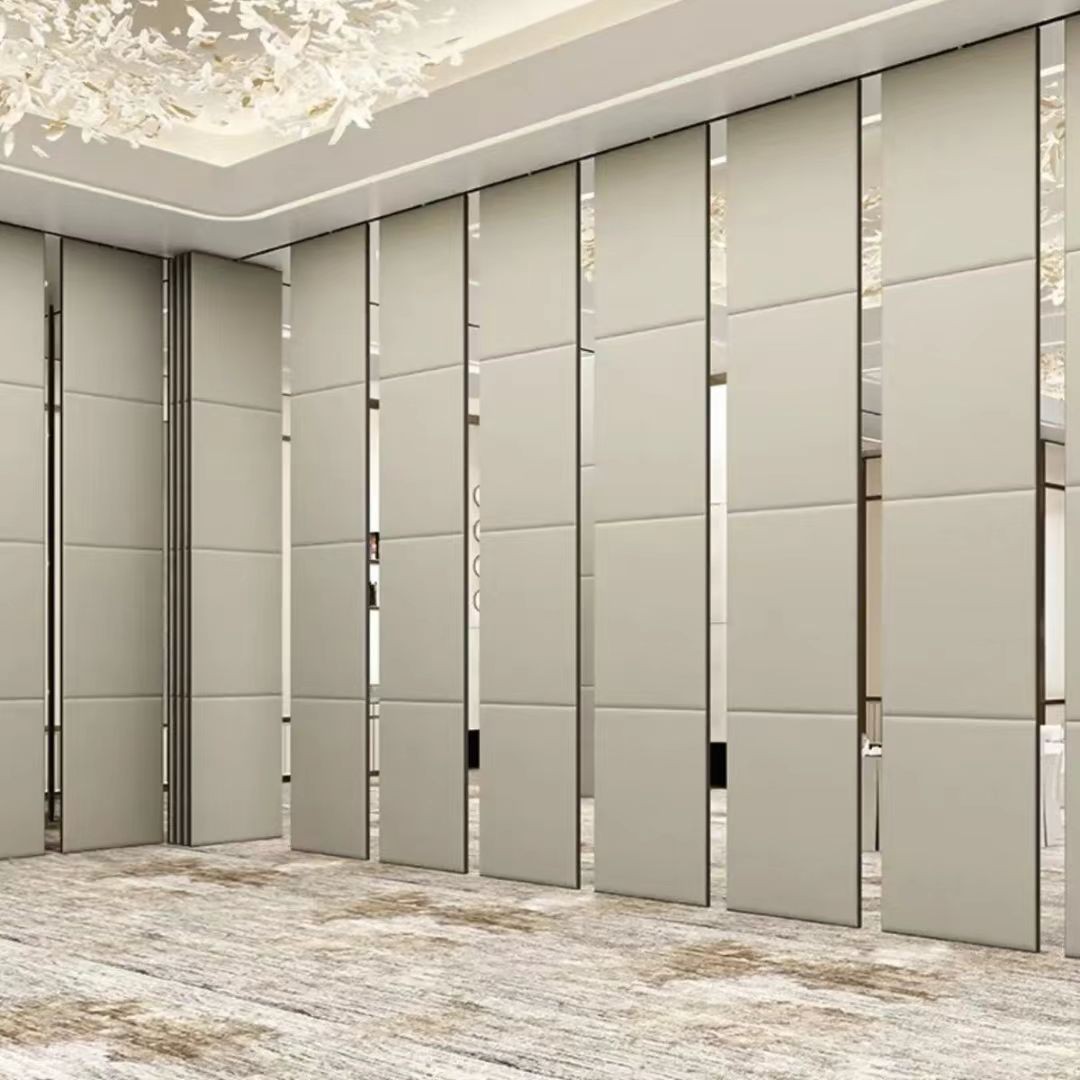

2. Flame retardant and environmentally friendly

All materials in the system meet the B1-level fire protection standard, are environmentally friendly and non-toxic, and can meet the safety requirements of hotels, shopping malls, offices and other densely populated places.

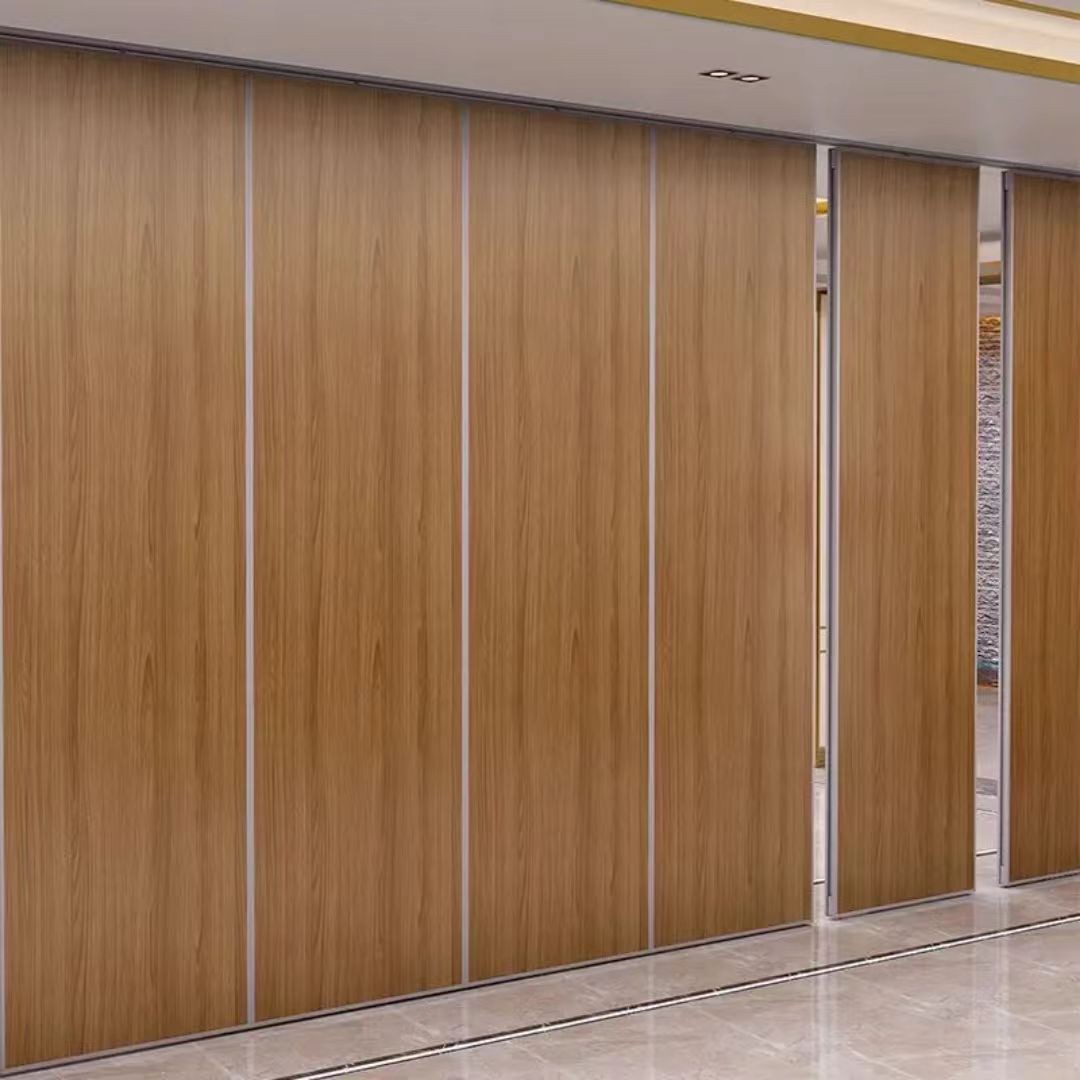

3. Effort-Saving Operation And Efficient Use

Semi-automatic Movable Partition is still manually pushed, which is light and smooth. After reaching the position, there is no need to manually operate the sealing, as it can be completed with one button, significantly reducing the usage intensity and improving the operational efficiency of the place.

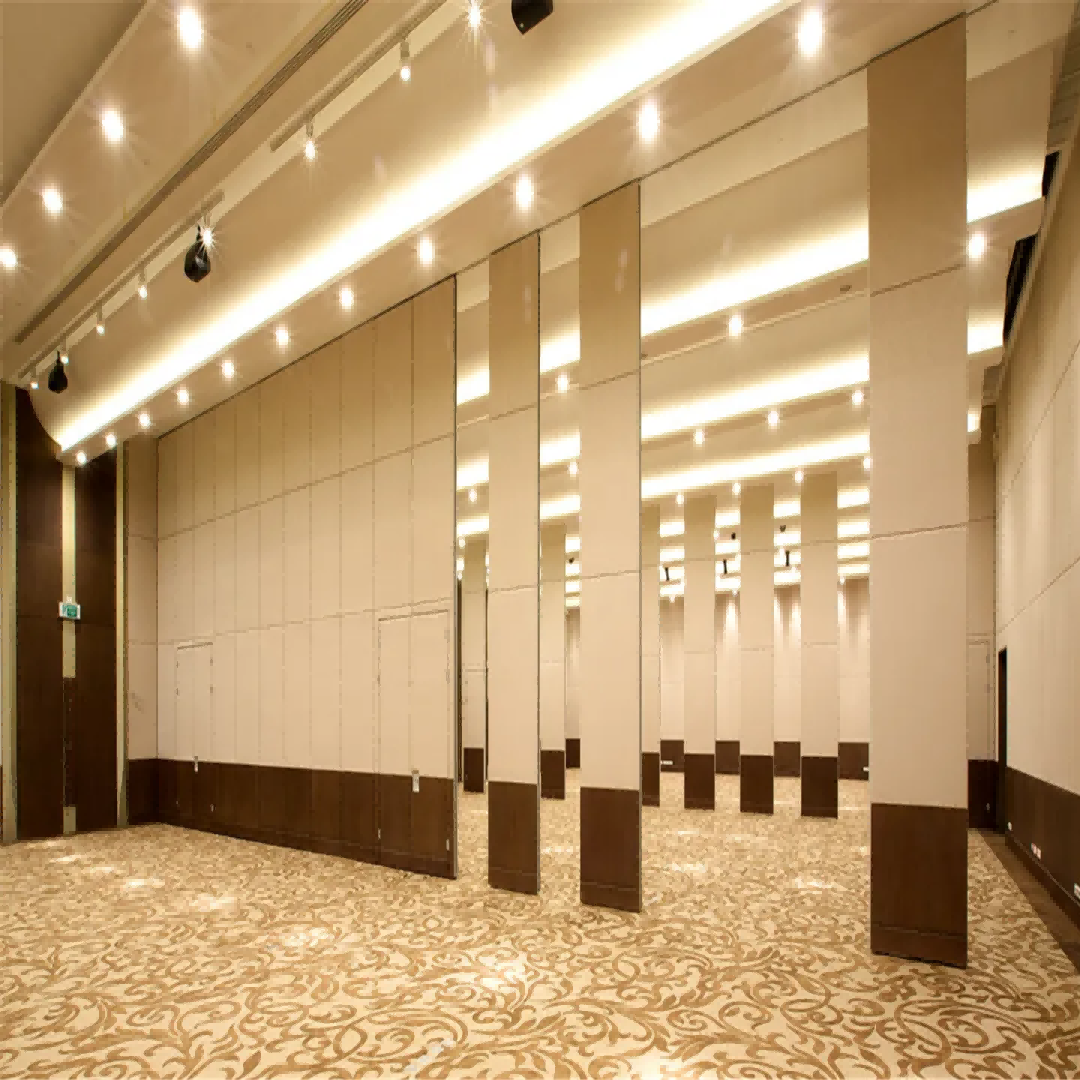

4.Efficient folding and storage , high space utilization

Semi-automatic Movable Partition can be folded in one direction, two directions or multiple groups according to on-site requirements. After storage, they occupy a small space and can be completely hidden in the side wall or the hidden panel space, without affecting the overall space appearance.

Products Customization

We provide one-stop customized solutions for Semi-automatic Movable Partition for project customers such as hotels, offices, and commercial spaces. We can customize professional soundproof movable partitions based on project construction drawings and actual application scenarios to meet the personalized space and acoustic requirements of different projects.

Product Customization Process





01

Requirement Submission & Quotation Consultation

- Wall-to-wall width: Actual width between two walls
- Floor-to-ceiling height: Vertical distance from ceiling to floor
- Surface finish: Desired surface treatment for the partition wall
- Providing engineering drawings will further enhance the accuracy of the quotation



02

Design & Confirm

We create custom design drawings and adjust until approved.



03

Pay & Produce

After receiving your deposit, we manufacture per the confirmed design.



04

Deliver & Accept

Products are shipped for your inspection; bulk orders can follow upon approval.



Product Type Selection

Type 65

Type 80

Type 88C

Type 100

Product size Selection

Type	Height (mm)	Length (mm)	Weight (for reference)	STC rating (for reference)
Type 65	Up to 3000	600-1200	25kg/sqm	30-35db
Type 80	Up to 3500	600-1200	30kg/sqm	35-40db
Type 88C	Up to 4500	600-1200	40kg/sqm	up to  48 dB
Type 100	Up to 5000	600-1200	35kg/sqm	up to  50 dB
Type 100W	Up to 5000	600-1200	50kg/sqm	up to  50 dB

Product Surface Finish Selection



Product Installation

Semi-automatic Movable Partition is installed by hanging from the top and does not require ground tracks, thus not damaging the ground decoration. It is fixed through dedicated tracks and load-bearing structures, and the partition panels can be hung on the tracks for movement and use. The installation is simple, stable and reliable, and easy to disassemble.

Project Cases

Our company has many years of experience in implementing large-scale space movable partition projects, with service cases covering five-star hotels, international conference centers, high-end commercial complexes, and corporate headquarters buildings. We can provide a series of services from the initial design, design drawing, production and manufacturing, installation guidance to after-sales support, providing customers with excellent acoustic solutions.



Banquet hall, hotel, restaurant, discussion room, meeting room, exhibition hall









Banquet hall













hotel

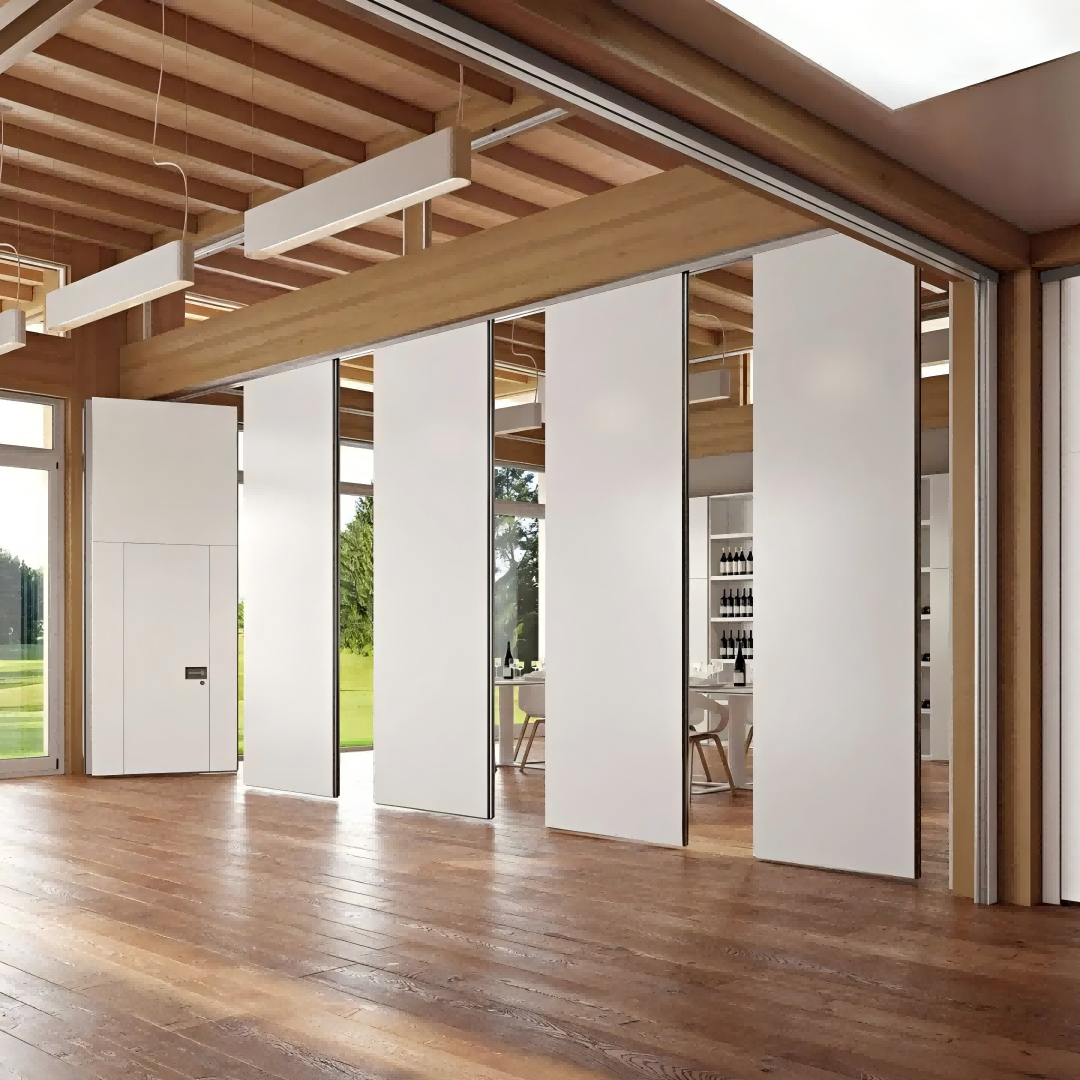

restaurant

discussion room

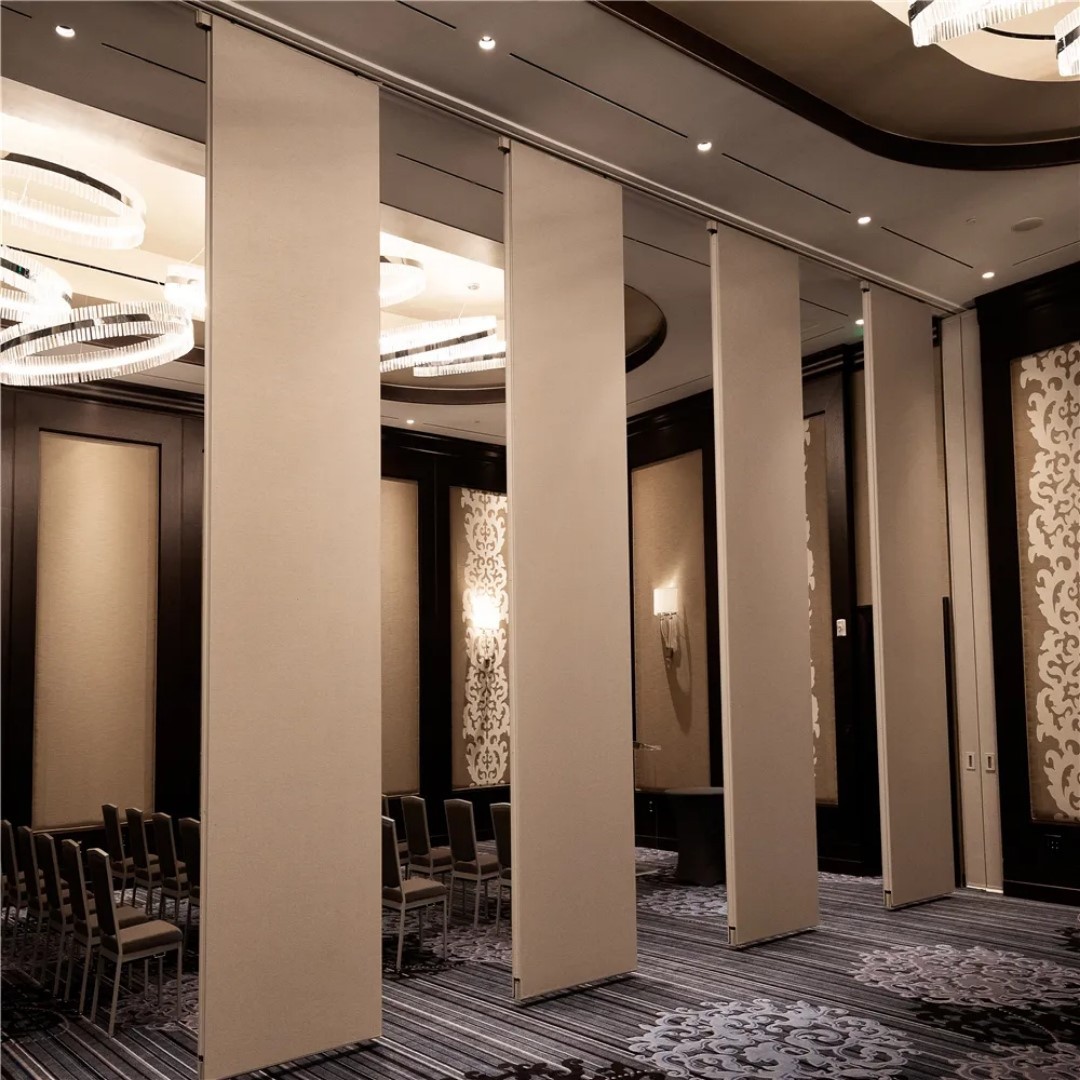

meeting room

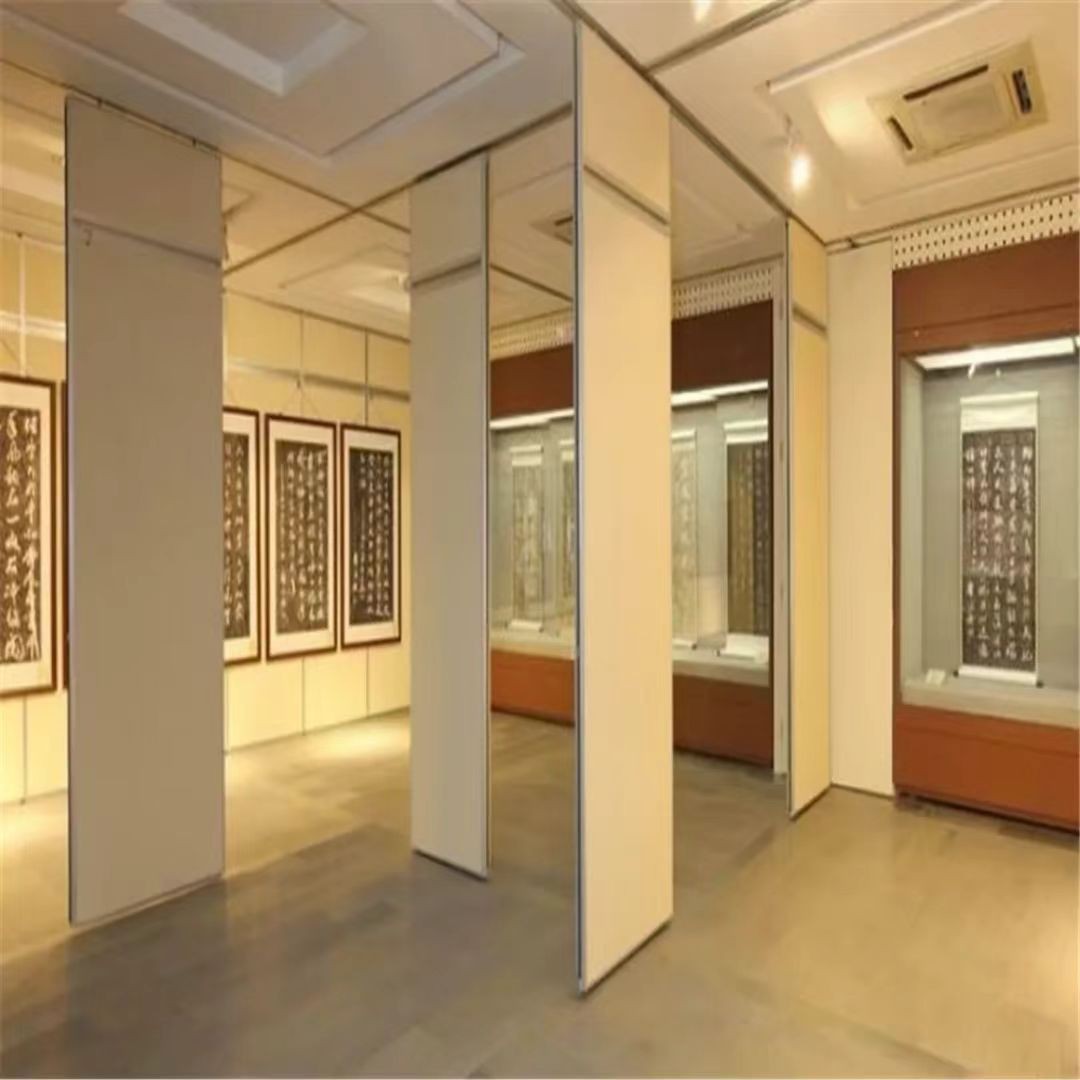

exhibition hall

Why Choose Us

MQ Acoustics is a professional acoustic material manufacturer and acoustic solution provider.We have factories in Yancheng and Foshan with 4 production lines and 16 CNC machines covering an area of 25,000 square meters.We provide dealers with stable quality, timely delivery and competitive prices.Our sales team in Guangzhou is experienced in exporting and provides professional acoustic services.
For contractors, we provide tailor-made solutions, one-stop purchasing and timely after-sales service

1. Over 10 years of experience in movable partition projects

We have provided professional partition customization and implementation services for numerous hotels and engineering contractors, capable of meeting the construction standards and customer demands of various projects.

2. Support for OEM/ODM customization services

We can customize partitions of different lengths, heights, thicknesses, colors, and panel styles according to different spaces, meeting the personalized requirements of different projects.

3. Provide technical support and service guarantees

We offer one-stop services including preliminary design, on-site installation guidance, and after-sales maintenance, ensuring stable project delivery and long-term reliable use.

qualification



Official certification, professional after sales service.

CE

EU

ISO

SGS

SVHC
