Weave Fabric Wrapped Acoustic Panels

Weave Fabric Wrapped Acoustic Panels

Auditoriums require clear acoustics. Classrooms require focused listening. Offices need a quiet environment to concentrate. Music venues absolutely need crystal-clear sound. What do these spaces have in common? They all benefit from fabric-covered acoustic panels. These panels reduce sound reflections, shorten reverberation time, and make conversations clearer. High acoustic comfort? That's exactly what's in it.
Send Inquiry
Description
Technical Parameters

Guangzhou MQ Acoustic Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of weave fabric wrapped acoustic panels in China, specialized in providing high quality customized products with low price. If you're going to buy durable weave fabric wrapped acoustic panels made in China, welcome to get pricelist from our factory.

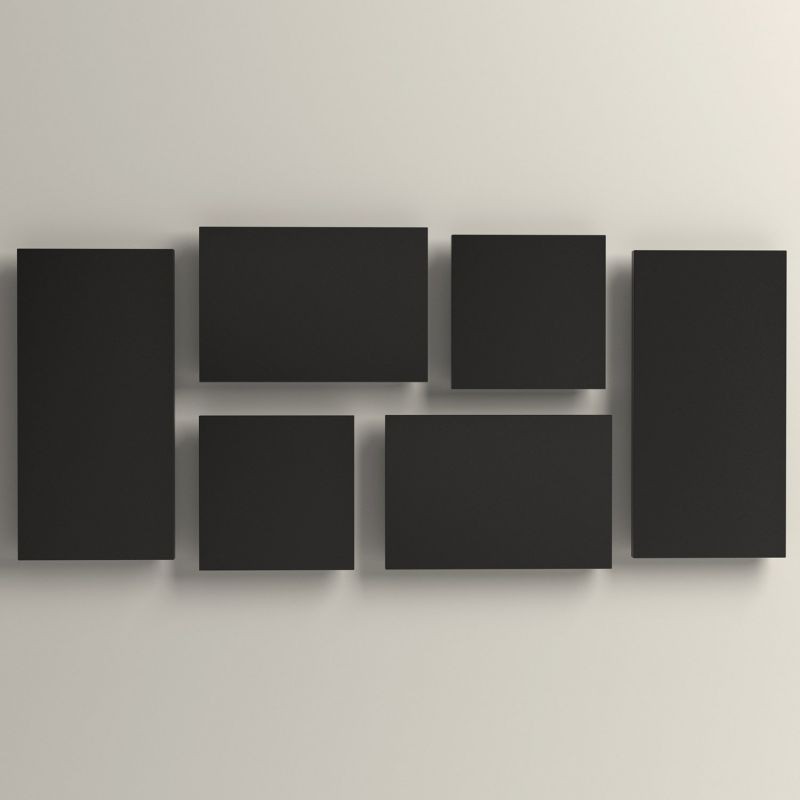

Weave Fabric Wrapped Acoustic Panels

Product Introduction



Black 48x24 4


Too many hard surfaces in a room is a common problem. Sound reflects and echoes, making voices unclear. What's the solution? Use fabric-covered sound-absorbing panels. They absorb reflected sound, shorten reverberation time, and make every word clearer. Try installing some in auditoriums, classrooms, offices, music rooms, etc., and you'll definitely feel a significant difference.



Product Parameters



Product Name

Weave Fabric Wrapped Acoustic Panels

Standard size

600x600, 1200x600mm

Standard thickness

15/20/25/50mm

Material

Yellow or white glass wool

Edges

45°beveling or 90°square

Surface:

Fabric or Leather

NRC

0.95

Flame retardant rating

EN 13501-A1

Eco-Friendly

Class E1



Acoustic performance

Which installation method provides better sound absorption in conference rooms and theaters? The answer is: leave a 100mm air gap behind the panel. Here's why: Take a 50mm thick fabric panel as an example. Observe the Noise Reduction Coefficient (NRC) curve on the left. Even this panel itself has good sound absorption performance in the mid-to-high frequency range. However, by adding a 100mm air gap, the low-frequency sound absorption performance is significantly improved. This is precisely why setting an air gap can improve low-frequency sound absorption.

NRC



Product customization

Customers can choose specifications such as size, panel thickness, fabric finish and color, target noise reduction factor (NRC), installation method, and flame retardancy.

chamfer fabric covered acoustic panels (2).
Edge customization
Hexagon Fabric Wrapped Acoustic Panels
Custom shape
acoustic fabric
Various of fabric



Products Description



fabric wrapped acoustic panel installation

Sound absorption and noise reduction



Struggling to follow what people say? Chances are, background noise is the culprit. Fabric-covered panels go straight after the main offenders-mid-to-high frequency sounds like chatter, wall bounces, and lingering echoes. Once those are under control, the room settles down. Words become crisp. No straining. That's what acoustic materials are really about.

Control reverberation time and improve speech intelligibilit



The real question isn't "Can you hear me?".Achieving this requires two elements: controllable reverberation time (RT) and high speech intelligibility (STI). Fabric panels perfectly meet both requirements. They suppress reverberation and noise, creating a clear and professional atmosphere. Moreover, every word is easier to hear. This is why they are so common in meetings, lectures, and presentations.

Maroon 48x24 5

Combine acoustics and decoration



When choosing wall coverings for a school or children's room, the two most important factors are "softness" and "durability." This wall panel combines both. Furthermore, it improves sound insulation and enhances the appearance of the walls. You can choose from a wide range of colors, countless patterns, and custom sizes. It blends seamlessly into the wall design, becoming a focal point. The design of this wall panel considers functionality, aesthetics, safety, and comfort. And you don't need to worry about fire safety; the flame-retardant version complies with building codes.

Product installation



Three ways to install:

Method A: Nail-free glue + quick-drying glue → best for flat walls

Method B: Nail gun → best for wooden bottom panels

Method C: Impaling clips → attach directly to wall

Large panels? Don't pick one method. Combine glue + nail gun. That's the secure installation.



fabric wrapped acoustic panel installation



fiberglass fabric acoustic panel

 Option 3:Attach impaling clips to wall

Fabric Acoustic Panel installation







Project Cases

Acoustic fabric wrapped sound absorption panels

Yaohu International Sports Center

The stadium received a full upgrade within one year. The scope included surface-mounted fabric-covered acoustic panels and cavity-packed glass wool insulation.

Premium Fabric-Wrapped Acoustic Panels

Keying Office Building

The company's new website had too high a similarity between its product detail pages. By modifying the wording, they reduced the similarity to below 8%.

fabric wrapped tackable wall panels

Construction of private cinemas

Hand over your blueprints. From there, we fine-tune each panel's color, size, and profile-so the design intent and acoustic goals come through perfectly.
