Product introduction

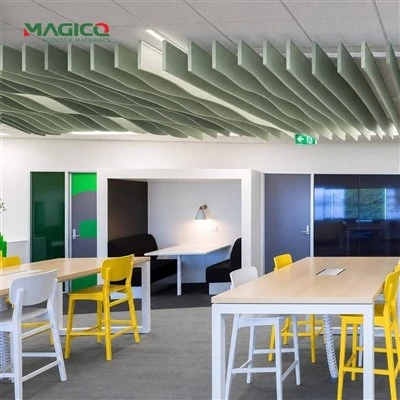

Sound baffles ceiling are vertically suspended acoustic baffles made from recycled PET felt. Hung down from overhead structures, sound baffles ceiling intercept sound waves floating in high-ceiling spaces and effectively reduce reverberation. Unlike full ceiling coverage, these hanging felt baffles introduce acoustic absorption in mid-air while creating striking layered visual effects. This product is widely preferred for tall interior spaces where standard flat ceiling panels cannot deliver sufficient acoustic performance, commonly specified by acoustic consultants and project contractors.
Technical Specifications
|
Product Name |
sound baffles ceiling |
| Raw Material | 100% Recycled Polyester PET Felt |
| U Cross Section Dimension | 45 × 50 mm custom Dimension |
| Thickness | 9 mm/12mm/15mm custom Thickness |
| Standard Baffle Length | 1200 – 2400 mm (Customizable Length) |
| Adjustable Installation Spacing | 45mm / 60mm / 80mm |
| NRC Rating | 0.80 – 0.95 |
| Complete Supporting Hardware | Hanger, C Carrier, Primary Angle, Spacer Clip |
|
Fire Resistance Grade |
EN 13501-A1 Class A Fire Retardant |
|
Environmental Grade |
E1 Zero-formaldehyde Eco-friendly Grade |
|
Customization |
Support size, shape, color and process customization |
| Key Benefits of sound baffles ceiling |
- Excellent sound absorption : Vertically hung sound baffles ceiling trap airborne sound waves, cutting reverberation and greatly improving speech intelligibility in tall rooms.
- Fire retardant material: Low flame spread performance to satisfy safety standards for public commercial buildings.
- Sustainable and non-toxic: Made from recycled PET felt, free from formaldehyde and toxic VOCs, safe for occupied public spaces.
- Low structural load: Lightweight felt baffles reduce load pressure on ceiling substrates compared to heavy ceiling materials.
- Flexible aesthetic design: Multiple wave profiles, rich colour and wood grain finishes, can be arranged in staggered or parallel layouts.
- Convenient on-site modification: Baffles can be cut easily on-site to adapt to irregular space dimensions.
Product Customization
We deliver all-round customized service for sound baffles ceiling to meet large-scale project acoustic and design requirements:
More style options
Easy Installation for felt ceiling panels
Sound baffles ceiling adopts modular suspension assembly:
Fix hangers to the ceiling slab;
Install C carrier rails and connect rail segments via C carrier connectors;
Attach acoustic baffles to C carriers, fit spacers and panel clamp accessories, fasten with rivets;
Carry out panel splicing on-site if single baffle length is over 2400mm. Adjust hanging height and gap between baffles based on acoustic design and architectural renderings. The lightweight baffles enable quick installation with little construction dust.
Project cases
With extensive hands-on acoustic project experience, we deliver one-stop custom solutions tailored to meet your acoustic targets and design vision. Our sound baffles ceiling have been supplied to open offices, shopping malls, lecture halls, auditoriums and large public renovation projects. We support bulk tender supply and provide on-site technical assistance for contractors and interior designers.
library
qualification
Our sound baffles ceiling meets international requirements: CE, ASTM E84, EN 13501-1 fire classification, OEKO‑TEX Standard 100, ISO 354 acoustic absorption test, REACH.
CE
EU
ISO
SGS
SVHC
Q: What is sound baffles ceiling?
A: Sound baffles ceiling are vertical hanging PET felt acoustic baffles suspended from ceiling, used for reverberation control in spaces with high ceilings.
Q: What spaces are suitable for sound baffles ceiling?
A: Sound baffles ceiling work best for high-ceiling areas including gymnasiums, churches, large conference halls, building atriums and auditoriums.
Q: What customisations can I get for sound baffles ceiling?
A: We customise baffle height, length, thickness, density, hanging spacing, colours and wave shapes. Wood grain patterns and custom forms are also available.
Q: How to maintain sound baffles ceiling?
A: Maintenance is simple. Clean felt surface with soft brush or low-pressure vacuum cleaner. No complicated routine maintenance required.
Q: Can you provide fire and acoustic certificates for tender submission?
A: Yes. We supply complete fire test reports and acoustic test certificates of sound baffles ceiling for your project bidding.
If you are interested in our sound baffles ceiling, send us an inquiry directly.
Guangzhou MQ Acoustic Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of sound baffles ceiling in China, specialized in providing high quality customized products with low price. If you're going to buy durable sound baffles ceiling made in China, welcome to get pricelist from our factory.
