Guangzhou MQ Acoustic Materials Co., Ltd. is one of the most reliable manufacturers and suppliers of exposed aluminum frame acoustic baffle in China, specialized in providing high quality customized products with low price. If you're going to buy durable exposed aluminum frame acoustic baffle made in China, welcome to get pricelist from our factory.

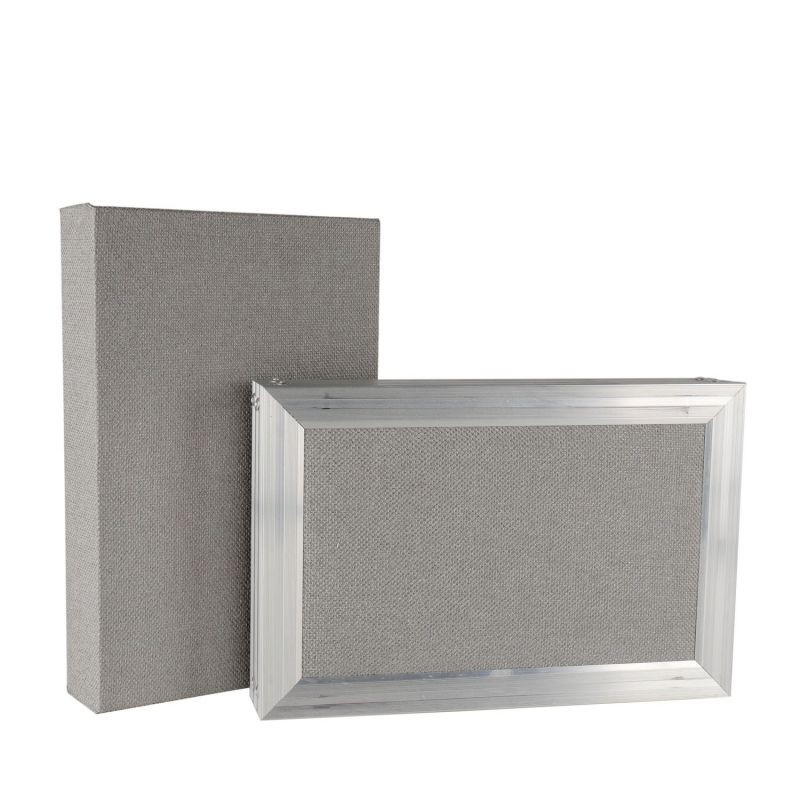

Exposed Aluminum Frame Acoustic Baffle
Summary
In large venues such as sports arenas, concert halls, and lecture theaters, fiberglass ceiling baffles suspended from above offer an effective acoustic solution. They reduce disruptive echoes, make spoken words more understandable, and elevate the overall quality of the sound environment. Beyond acoustic benefits, they also help achieve a visual and spatial balance - supporting both aesthetic goals and the practical use of available room volume.
Parameters
|
Name |
Exposed Aluminum Frame Acoustic Baffle |
|
Standard size |
600x600,1200*600,1200*2400mm,customize |
|
Standard thickness |
20/25/40/50mm |
|
Material |
Yellow or white glass wool |
|
NRC |
0.9 |
|
Flame retardant rating |
EN 13501-A1 |
|
Eco-Friendly |
Class E1 |
Acoustic performance
High-frequency noise is most effectively absorbed by fiberglass acoustic panels. If you boost their thickness, their ability to dampen low-frequency noise also gets noticeably better.
Customization
We are a manufacturing facility that offers fully customizable fiberglass space absorbers. Buyers can specify a wide range of options, including dimensions, geometry, color finishes, and aluminum framing - which can be either exposed or concealed within the structure.
Description
Control how sound reverberates within a space, cut down on signal reflections off surfaces, and stop noise from accumulating excessively
Large spaces typically have ceilings that are high off the ground, which can easily lead to repeated sound wave reflections. Fiberglass ceiling sound absorbers can absorb high-frequency sounds, improve the reverberation of the space, and enhance the acoustic effect.
Make speech more distinct and improve how music sounds in the space
Fiberglass ceiling panels absorb high-frequency sound, reduce sound reflection, and improve sound clarity. Combining fiberglass absorbers with diffusers or other acoustic products can achieve even better acoustic results.
Dual-sided sound capture, offering excellent noise-reduction performance
In large spaces with significant floor height, conventional continuous fiberglass panels are unsuitable due to their high installation difficulty; this suspended fiberglass sound absorber with an aluminum frame offers superior installation and stability compared to conventional fiberglass ceilings.
Surface treatments that look good, along with thoughtful design for how everything appears
Fiberglass ceiling panels maintain an aesthetically pleasing appearance and improve the acoustic environment while avoiding a reduction in ceiling height. They can be suspended in parallel, wavy, or geometric patterns.
Installation
For installing fiberglass ceiling panels, you generally have two options. One approach involves using steel cables to hang the panels from a supporting grid structure. The other method requires screwing the panels directly onto the joists beneath the ceiling. When it comes to how the panels are oriented, three standard configurations exist: placing them flat, setting them upright, or angling them at 45 degrees. Depending on what a particular job calls for, the mounting process can be adjusted accordingly. Should the need arise, we are also able to offer bespoke fastening components and ready-made openings in the panels.
Project Cases
Dongguan Wanjiang Middle School
The ceiling of the gymnasium auditorium was fitted with fiberglass sound absorbers, which effectively improved the problems of excessive echo, low sound clarity, and poor reverberation in the large space.
First Middle School Auditorium
The angled installation enhances the overall design aesthetics while also improving acoustics.
City Gymnasium
Inside the gymnasium, fabric-wrapped acoustic panels are installed on the walls, and fiberglass sound absorbers are installed on the ceiling. This combination maximizes the improvement of the gymnasium's acoustic environment, making the entire gymnasium suitable for both performances and sports.
