Concealed Aluminum Frame Acoustic Baffle
Product Introduction
Fiberglass Suspended ceiling baffles are useful in large spaces such as stadiums, concert halls, and auditoriums, as they can control reverberation, improve sound clarity, optimize the acoustic environment, and balance aesthetics with space utilization.

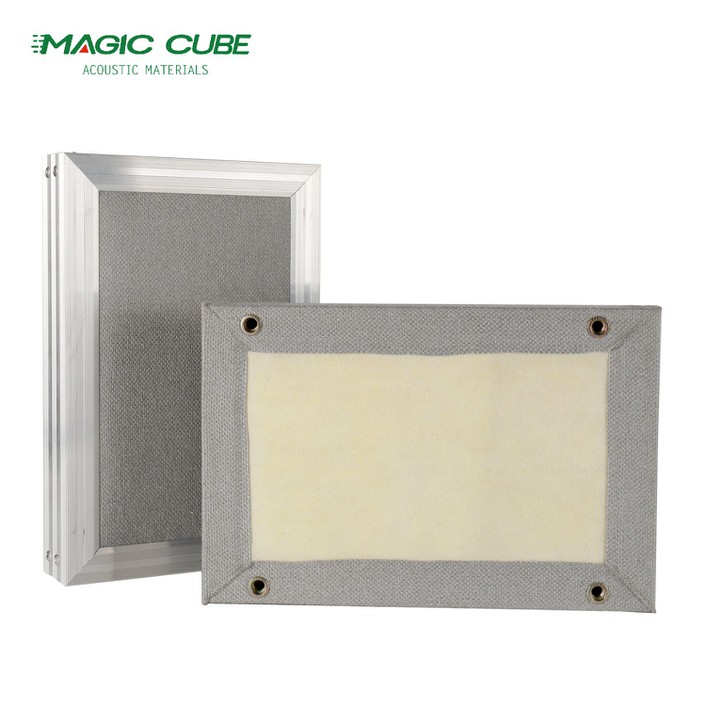

The aluminum frame of an aluminum frame acoustic baffle can be external or internal; the acoustic performance is the same, the difference lies only in appearance. Generally, an externally framed acoustic baffle is more durable because the aluminum frame encases the fabric and glass wool, providing some protection. For stadiums, exposed aluminum frame acoustic baffles are more commonly used; for auditoriums, concert halls, and other art venues, concealed aluminum frame acoustic baffles offer better decorative appeal.
Product Parameters
|
Product Name |
Concealed Aluminum Frame Acoustic Baffle |
|
Standard size |
600x600,1200*600,1200*2400mm,customize |
|
Standard thickness |
20/25/40/50mm |
|
Material |
Yellow or white glass wool |
|
NRC |
0.9 |
|
Flame retardant rating |
EN 13501-A1 |
|
Eco-Friendly |
Class E1 |
Acoustic performance
Aluminum Frame Acoustic Baffle performs near full absorption (α≈1.0) from 500Hz upwards.Low-frequency performance improves significantly with thickness.
Compared to wall panels, Fiberglass Suspended ceiling baffles have better sound absorption performance due to their double-sided sound absorption and air cavity structure.
Product customization
As a project-oriented supplier, our Fiberglass Suspended Ceiling Baffles can be customized to meet project requirements, including size, thickness, color, installation system, and both built-in and external aluminum frames. We can also advise on acoustic layout and integrate the sound-absorbing panels into the overall design to meet both functional and aesthetic needs.
Products Description
Control reverberation, reduce echoes and standing waves
Large spaces like stadiums typically have high ceilings, large areas, and many hard surfaces, making sound highly susceptible to repeated reflections and resulting in excessively long reverberation times.
Fiberglass suspended ceiling baffles can absorb mid-to-high frequency sound from the top, effectively shortening the reverberation time (RT60) and preventing sound "tailing" and blurring.
Improve speech intelligence and musical acoustics
Fiberglass Suspended ceiling baffles reduce multiple sound reflections, increase the proportion of direct sound, improve STI, and avoid muddy sound. When used in conjunction with diffusers, they can achieve perfect clarity and sound envelope.
Double-sided sound absorption and high sound absorptiony
Compared to traditional ceilings, Fiberglass Suspended Ceiling Baffles offer effective sound absorption from both sides, resulting in higher sound absorption efficiency per unit area.
Especially suitable for: Large spaces with high ceilings where a full-length suspended ceiling is not feasible.
Decoration and Design
Baffles can be used in partial arrangements without lowering the ceiling height, maintaining a modern design style. Fiberglass-suspended ceiling baffles have strong lines and a more sophisticated look; they can be arranged in parallel arrays, wave shapes, or geometric patterns to enhance the spatial design.
The installation position can also be adjusted according to the beam location, lighting fixtures, and air conditioning units.
Product installation
Fiberglass suspended ceiling baffles are typically installed by suspending them from a joist frame using ropes or by directly fixing them to the joists with screws. There are generally three suspension methods: horizontal, vertical, and 45° suspension.The specific installation can be customized according to the project requirements, with installation accessories and openings provided.
Project Cases
Dongguan Wanjiang Middle School
The auditorium of Wanjiang Middle School in Dongguan underwent renovations. Custom-designed fiberglass-suspended ceiling baffles were installed to reduce echoes and improve the acoustics for speeches and performances.
First Middle School Auditorium
The 45° suspension installation method creates a wave-like effect on the overall Fiberglass Suspended Ceiling Baffles, with contrasting colors used to create a visual effect.

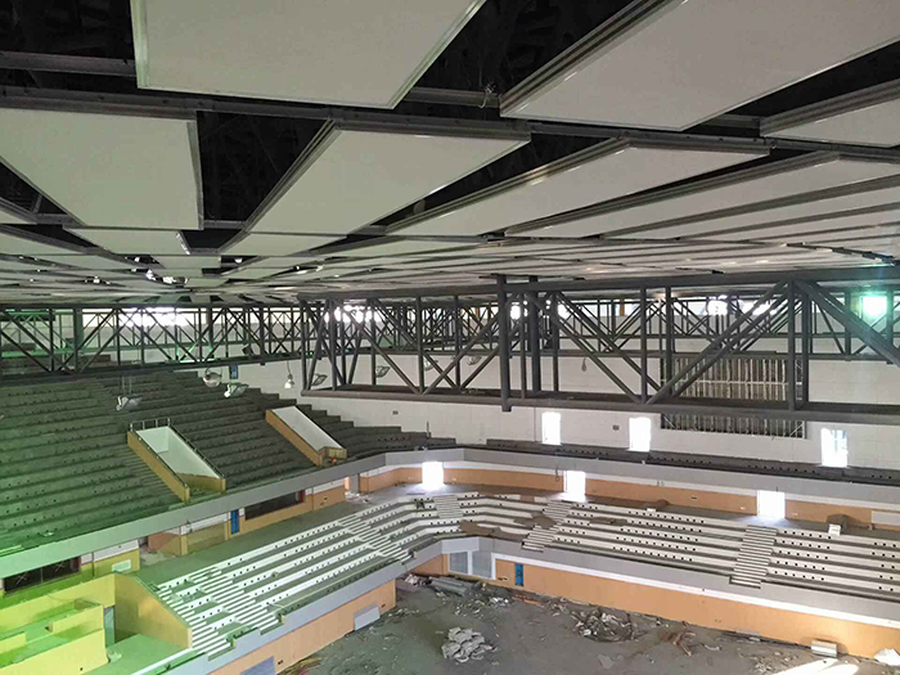

City Gymnasium
The combination of Fiberglass Suspended ceiling baffles and Fabric Wrapped Acoustic Panels achieves perfect acoustics throughout the large space, significantly reducing echoes and standing waves.
Senior high school swimming pool
The use of white fabric and a horizontal installation method creates a simpler overall look and makes the venue appear brighter. It also significantly reduces noise from the water.
Auditorium
The auditorium is very large, with a very high ceiling, requiring a large number of fiberglass suspended ceiling baffles. The installation also had high requirements; hanging was not an option, and they had to be fixed to the frame with screws. Furthermore, strict dimensional requirements existed; if the dimensions were too long, the aluminum frame could easily deform.
University Indoor Conference Hall
The entire conference hall was converted from a gymnasium, so the space is very large. Fiberglass-suspended ceiling baffles were installed on the ceiling, which significantly improves the acoustics, both in terms of reducing echoes typical of gymnasiums and enhancing the overall acoustics of the conference hall.
our company
MQ Acoustics is a professional acoustic material manufacturer and acoustic solution provider.We have factories in Yancheng and Foshan with four production lines and sixteen machines that cut things out. These factories cover an area of 25,000 square meters. We give our dealers quality things deliver them on time and charge fair prices. Our sales team in Guangzhou is very good at sending things to countries and helps with sound problems.For contractors, we provide tailor-made solutions, one-stop purchasing and timely after-sales service.
10+
YEARS OF PRODUCTION EXPERIENCE
We have over 10 years of experience in exporting acoustic materials and are factory integrating R&D, production, sales and service.
25000+
PRODUCTION BASE
We have a 25,000+ sqm production base, equipped with 4 automated production lines and 16 CNC engraving machines.We support one-stop production from raw materials to finished products.With a daily capacity of 3,000+ pieces, we efficiently handle bulk orders and customized projects
60+
R&D, PRODUCTION & QC TEAM
We have a professional team of over 60 people, covering R&D, production, quality control and technical support.We have rich experience in acoustic material development, product optimization and customized solutions.
